HEAT TRANSFER IN FORCED CONVECTION

HEAT TRANSFER IN FORCED CONVECTION

More Views

HEAT TRANSFER IN FORCED CONVECTION

Code:

DESCRIPTION:

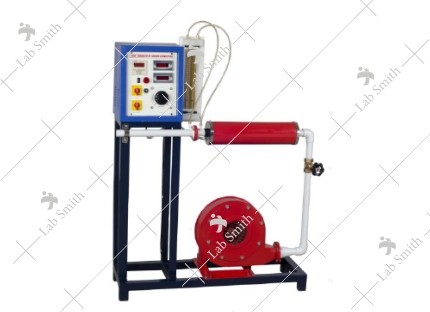

The apparatus consists of blower unit fitted with the test pipe. Nichrome wire heater surrounds the test section. Four Temperature Sensors are embedded on the test section, two placed in the air stream at the entrance and exit of the test section to measure the inlet and outlet air temperature.


Test pipe is connected to the delivery side of the blower along with the orifice to measure flow of air through the pipe. Constant heat flux is given to pipe by an electric heater through a variac and measured by Digital Voltmeter and Digital Ammeter.

EXPERIMENTATION:

To determine average surface heat transfer coefficient for a pipe by forced convection.
Comparison of heat transfer coefficient for different airflow rates and heat flow rates.
To plot surface temperature distribution along the length of pipe.

UTILITIES REQUIRED :

Electricity Supply: 1 Phase, 220 V AC, 10 Amp.
Floor area of 1.2 m x 0.5 m.

TECHNICAL DETAILS :

Test section	Horizontal, externally heated
Diameter	28 mm (approx.)
Length	400 mm (approx.)
Blower	FHP of Standard make.
Heater	Nichrome Wire.
Air Flow Measurement	Orificemeter & Manometer.
Control panel comprising of
Digital Voltmeter	0-300 Volt.
Digital Ammeter	0-2 Amp.
Variac	0-230 V, 2 Amp
Digital Temp. Indicator	0-200°C, with multi-channel switch.
Temperature Sensors	RTD PT-100 type-6Nos.
With standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHT-051	HEAT TRANSFER IN FORCED CONVECTION

Description

Details

DESCRIPTION:

The apparatus consists of blower unit fitted with the test pipe. Nichrome wire heater surrounds the test section. Four Temperature Sensors are embedded on the test section, two placed in the air stream at the entrance and exit of the test section to measure the inlet and outlet air temperature.


Test pipe is connected to the delivery side of the blower along with the orifice to measure flow of air through the pipe. Constant heat flux is given to pipe by an electric heater through a variac and measured by Digital Voltmeter and Digital Ammeter.

EXPERIMENTATION:

To determine average surface heat transfer coefficient for a pipe by forced convection.
Comparison of heat transfer coefficient for different airflow rates and heat flow rates.
To plot surface temperature distribution along the length of pipe.

UTILITIES REQUIRED :

Electricity Supply: 1 Phase, 220 V AC, 10 Amp.
Floor area of 1.2 m x 0.5 m.

TECHNICAL DETAILS :

Test section	Horizontal, externally heated
Diameter	28 mm (approx.)
Length	400 mm (approx.)
Blower	FHP of Standard make.
Heater	Nichrome Wire.
Air Flow Measurement	Orificemeter & Manometer.
Control panel comprising of
Digital Voltmeter	0-300 Volt.
Digital Ammeter	0-2 Amp.
Variac	0-230 V, 2 Amp
Digital Temp. Indicator	0-200°C, with multi-channel switch.
Temperature Sensors	RTD PT-100 type-6Nos.
With standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHT-051	HEAT TRANSFER IN FORCED CONVECTION
