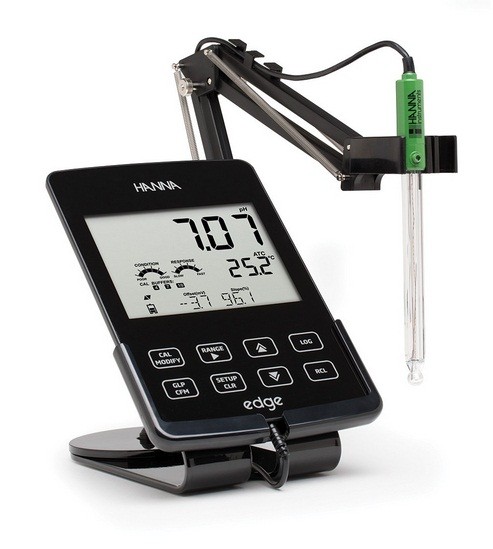

HI2020 - edge® Multiparameter pH Meter
Hanna Instruments is proud to introduce the world’s most innovative pH meter: edge®.
edge’s groundbreaking design is the culmination of Hanna’s vision, design capabilities, integrated production and world class R&D. The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers. For those that prefer very simplistic operation there is a basic mode operation with a simplified menu and options. For those who require advanced features there is the full featured standard operating mode. The edge HI2020 pH kit can be upgraded at any time with additional probes to measure Conductivity or Dissolved Oxygen.
1200-Hour Battery Life
edge features a 5.5” LCD display that you can clearly view from over 5 meters. The large display and it’s wide 150° viewing angle provide one of the easiest to read LCDs in the industry.
Capacitive Touch
edge features a capacitive touch keypad that gives a distinctive, modern look. Since the keypad is part of the screen, your buttons can never get clogged with sample residue. The up and down keys move faster when continuously held (ideal for scrolling through numerous logs).
Clear, Full Text Readout
edge features a 5.5” LCD display that you can clearly view from over 5 meters. The large display and it’s wide 150° viewing angle provide one of the easiest to read LCDs in the industry.Details
edge® is packed with many cutting edge features to ensure accuracy and usability.
Digital Electrodes
edge electrodes are highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge once the electrode is plugged in. These digital electrodes also feature an easy to plug in 3.5 mm connector so you never have to worry about the right angle or aligning pins.
Sensor Check
When used with Hanna’s pH electrodes equipped with a matching pin, edge constantly checks the impedance of the pH measuring electrode to notify you in real time in the event of glass breakage. During calibration, Sensor Check checks the state of the junction. The reference junction is also evaluated and reported on the display.
3.5 mm Probe Input
Plugging an electrode in has never been simpler; no alignments, no broken pins, just connect the 3.5 mm plug and get started.edge® is incredibly versatile. It can be used in a variety of ways and in a variety of environments without taking up the space of a traditional benchtop meter.
Wall Mount
Using the wall mount cradle (included), edge can be placed on a wall, leaving zero footprint on the benchtop space. The cradle has a built-in connector to power edge and charge its batteries. edge's zero footprint is designed to save you valuable benchtop space.
Cradle and Electrode Holder
edge is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the edge securely in place at the optimum viewing angle.
edge® is incredibly thin and weighs only 8.8 oz., has an 8 hour battery life, and dual USB inputs.
Two USB Ports
edge includes one standard USB for exporting data with a flash drive and a second micro USB port for you to connect to a computer for file export and for charging your edge when the cradle is not available.Data Logging
edge allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.Two Operating Modes
edge can be used in Extended or Basic Operating Modes. Extended Mode enables all features available while the Basic Mode reduces the amount of features to a very simple operation. For example, in extended mode edge offers 5 point calibration with 2 custom buffers while in basic mode calibration can only be performed to 3 points with 5 preprogrammed buffers.pH Specifications
pH Range -2.000 to 16.000 pH, -2.00 to 16.00 pH, ±1000 mV pH Resolution 0.001 pH, 0.01 pH, 0.1 mV pH Accuracy (@25ºC/77ºF) ±0.2 mV, ±0.01 pH, ±0.002 pH pH Calibration 5 points (Standard mode) 1.68, 4.01 (3.00†), 6.86, 7.01, 9.18, 10.01, 12.45, and two custom buffers; 3 points (Basic mode) 4.01; 6.86; 7.01; 9.18; 10.01 pH Temperature Compensation ATC: -5.0 to 100.0ºC; 23.0 to 212.0°F* EC Specifications
EC Range 0.00 to 29.99 μS/cm, 30.0 to 299.9 μS/cm, 300 to 2999 μS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm (absolute EC)** EC Resolution 0.01 μS/cm, 0.1 μS/cm, 1 μS/cm, 0.01 mS/cm, 0.1 mS/cm EC Accuracy (@25ºC/77ºF) ±1% of reading (±0.05 μS/cm or 1 digit, whichever is greater) EC Calibration 1 point offset calibration (0.00 μS/cm in air), 1 point slope calibration in EC standard 84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm and 111.8 mS/cm EC Temperature Compensation ATC (0.0 to 100.0ºC; 32.0 to 212.0 °F), NoTC TDS Specifications
TDS Range 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150 to 1499 ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L (absolute TDS)**, with 0.80 conversion factor TDS Resolution 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L TDS Accuracy (@25ºC/77ºF) ±1% of reading (±0.03 ppm or 1 digit, whichever is greater) TDS Calibration through EC calibration TDS Conversion Factor 0.40 to 0.80 Salinity Specifications
Salinity Range 0.0 to 400.0% NaCl, 2.00 to 42.00 PSU, 0.01 to 42.00 PSU, 0.0 to 80.0 g/L* Salinity Resolution 0.1% NaCl, 0.01 PSU, 0.01 g/L Salinity Accuracy (@25ºC/77ºF) ±1% of reading Salinity Calibration 1 point with HI 7037L 100% NaCl sea water standard (other scales through EC calibration) DO Specifications
DO Range 0.00 to 45.00 ppm (mg/L), 0.0 up to 300.0% saturation DO Resolution 0.01 ppm, 0.1% saturation DO Accuracy ±1 digit, ±1.5% of reading DO Calibration one or two points at 0% (HI 7040 solution) and 100% (in air) DO Temperature Compensation ATC: 0 to 50 ºC; 32.0 to 122.0 °F Salinity Compenstaion 0 to 40 g/L (with 1 g/L resolution) DO Altitude Compensation -500 to 4000 m (with 100 m resolution) Temperature Specifications
Temperature Range -20.0 to 120.0 ºC, -4.0 to 248.0 °F Temperature Resolution 0.1 °C, 0.1 °F Temperature Accuracy ±0.5 °C, ±0.9 °F Additional Specifications
pH Electrode Diagnostics Glass and reference junction diagnostics ( HI 11311 & HI 12301 only), out of calibration range , probe condition, response time Logging up to 1000*** records organized in: Manual log-on-demand (Max. 200 logs), Manual log-on-stability (Max. 200 logs), Interval logging *** (Max. 600 samples; 100 lots) Connectivity 1 micro USB port for charging and PC connectivity, 1 USB port for storage Environment 0 to 50°C (32 to 122°F), RH max 95% non-condensing Battery Type/Life Built-in rechargeable battery with up to 8 hours of continuous use Power Supply 5 VDC adapter (included) Dimensions 202 x 140 x 12.7mm (8” x 5.5” x 0.5”) Weight 250 g (8.82 oz) Ordering Information HI2020 pH kit includes: HI11310 glass body, refillable pH electrode with temperature sensor, pH 4 buffer solution sachets, pH 7 buffer solution sachets, pH 10 buffer solution sachets, electrode cleaning solution sachets,USB cable, benchtop docking station with electrode holder, wall mount cradle, 5 VDC power adapter, instruction manual, and quality certificate. Notes * temperature limits will be reduced to actual probe/sensor limits
** with temperature compensation function disabled
*** for standard mode only - Additional Information
-
