- Description
-
Details

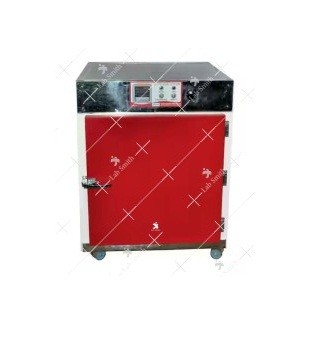

Hot Air Oven Universal (Memmert Type) -211
Applications
- Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
- Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various laboratories, industries, R & D labs etc.
- Synthetic door gasket made of neoprene on the double walled door.
- User oriented design of shelves makes you adjust each space of shelves without difficulty.
- Adjustable two ventilation slides control inner air/ vapour circulation.
- Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.
Constructional Features
- Outer body made of PCRC sheet duly powder coated.
- Inner chamber and perforated trays made of Stainless Steel (SS-304)
- Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
- Bigger sized units mounted on caster wheels for easy portability.
- Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
- To work on 220/230V AV, 50/60 Hz supply.
Technical Specifications for Thermostatic Model:
- No. of Shelves: 2/3
- Temperature Range: 50oC to 250oC
- Type: Available with or without forced convection system
- Temp. Controller: Hydraulic type capillary thermostat
- Temperature Accuracy: +1oC
- Temp. Display: Thru L-shaped prismatic thermometer
Technical Specifications for Digital Model:
- No. of Shelves: 2/3
- Temperature Range: 50oC to 250oC +1oC
- Forced Convection: Available with forced convection system (Standard Features)
- Temp. Controller: Microprocessor based PID Digital Temperature Indicator-Cum-Controller with LED Display
- OR Auto time Control Microprocessor (SAD) With Digital Timer *ADD Prefix SAD to Model
- OR Fuzzy Logic Control PLC-HMI *ADD Prefix PLC to Model
- Regulator: Solid state electronic relay with protective heat sink
- Safety Device:Over temperature limiter switch prevents overheating
Ordering Information:
Oven Universal Thermostatic Model
Cat. No.
Inner Chamber Material
Capacity Ltrs.
Internal Dimensions
(WxDxH) mm.
LI-18100/1
Hot Air Oven Universal, Aluminum with Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/2
Hot Air Oven Universal, Aluminum with Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/3
Hot Air Oven Universal, Aluminum with Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/4
Hot Air Oven Universal, Aluminum with Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/5
Hot Air Oven Universal, Aluminum with Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/6
Hot Air Oven Universal, Aluminum with Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/7
Hot Air Oven Universal, Aluminum with Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/8
Hot Air Oven Universal, Aluminum with Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/9
Hot Air Oven Universal, Aluminum with Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/10
Hot Air Oven Universal, Aluminum without Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/11
Hot Air Oven Universal, Aluminum without Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/12
Hot Air Oven Universal, Aluminum without Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/13
Hot Air Oven Universal, Aluminum without Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/14
Hot Air Oven Universal, Aluminum without Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/15
Hot Air Oven Universal, Aluminum without Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/16
Hot Air Oven Universal, Aluminum without Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/17
Hot Air Oven Universal, Aluminum without Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/18
Hot Air Oven Universal, Aluminum without Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/19
Hot Air Oven Universal, Stainless Steel with Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/20
Hot Air Oven Universal, Stainless Steel with Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/21
Hot Air Oven Universal, Stainless Steel with Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/22
Hot Air Oven Universal, Stainless Steel with Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/23
Hot Air Oven Universal, Stainless Steel with Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/24
Hot Air Oven Universal, Stainless Steel with Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/25
Hot Air Oven Universal, Stainless Steel with Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/26
Hot Air Oven Universal, Stainless Steel with Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/27
Hot Air Oven Universal, Stainless Steel with Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/28
Hot Air Oven Universal, Stainless Steel without Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/29
Hot Air Oven Universal, Stainless Steel without Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/30
Hot Air Oven Universal, Stainless Steel without Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/31
Hot Air Oven Universal, Stainless Steel without Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/32
Hot Air Oven Universal, Stainless Steel without Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/33
Hot Air Oven Universal, Stainless Steel without Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/34
Hot Air Oven Universal, Stainless Steel without Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/35
Hot Air Oven Universal, Stainless Steel without Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/36
Hot Air Oven Universal, Stainless Steel without Fan
750 ltrs
900 x 900 x 900 mm
Oven Universal Digital Model
Cat. No.
Inner Chamber Material
Capacity Ltrs.
Internal Dimensions
(WxDxH) mm.
LI-18100/37
Hot Air Oven Universal, Aluminum with Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/38
Hot Air Oven Universal, Aluminum with Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/39
Hot Air Oven Universal, Aluminum with Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/40
Hot Air Oven Universal, Aluminum with Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/41
Hot Air Oven Universal, Aluminum with Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/42
Hot Air Oven Universal, Aluminum with Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/43
Hot Air Oven Universal, Aluminum with Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/44
Hot Air Oven Universal, Aluminum with Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/45
Hot Air Oven Universal, Aluminum with Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/46
Hot Air Oven Universal, Aluminum without Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/47
Hot Air Oven Universal, Aluminum without Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/48
Hot Air Oven Universal, Aluminum without Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/49
Hot Air Oven Universal, Aluminum without Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/50
Hot Air Oven Universal, Aluminum without Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/51
Hot Air Oven Universal, Aluminum without Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/52
Hot Air Oven Universal, Aluminum without Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/53
Hot Air Oven Universal, Aluminum without Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/54
Hot Air Oven Universal, Aluminum without Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/55
Hot Air Oven Universal, Stainless Steel with Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/56
Hot Air Oven Universal, Stainless Steel with Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/57
Hot Air Oven Universal, Stainless Steel with Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/58
Hot Air Oven Universal, Stainless Steel with Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/59
Hot Air Oven Universal, Stainless Steel with Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/60
Hot Air Oven Universal, Stainless Steel with Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/61
Hot Air Oven Universal, Stainless Steel with Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/62
Hot Air Oven Universal, Stainless Steel with Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/63
Hot Air Oven Universal, Stainless Steel with Fan
750 ltrs
900 x 900 x 900 mm
LI-18100/64
Hot Air Oven Universal, Stainless Steel without Fan
28 ltrs
300 x 300 x 300 mm
LI-18100/65
Hot Air Oven Universal, Stainless Steel without Fan
45 ltrs
355 x 355 x 355 mm
LI-18100/66
Hot Air Oven Universal, Stainless Steel without Fan
95 ltrs
455 x 455 x 455 mm
LI-18100/67
Hot Air Oven Universal, Stainless Steel without Fan
125 ltrs
455 x 455 x 605 mm
LI-18100/68
Hot Air Oven Universal, Stainless Steel without Fan
224 ltrs
605 x 605 x 605 mm
LI-18100/69
Hot Air Oven Universal, Stainless Steel without Fan
252 ltrs
605 x 455 x 910 mm
LI-18100/70
Hot Air Oven Universal, Stainless Steel without Fan
336 ltrs
605 x 605 x 910 mm
LI-18100/71
Hot Air Oven Universal, Stainless Steel without Fan
500 ltrs
600 x 900 x 910 mm
LI-18100/72
Hot Air Oven Universal, Stainless Steel without Fan
750 ltrs
900 x 900 x 900 mm
Options
Cat. No.
Options
LI-18101/1
Communication Port for PC Interface, complete with Communication cable - Additional Information
-
