DESCRIPTION:

Hydraulic Ram is used for pumping small quantity of water at high head, when large quantity of water at small head is available. It operates on the principle that if flowing water is suddenly brought to rest in a long pipe, a phenomena known as water hammer occurs, wherein a pressure wave travels along the pipe. This principle is used in the Hydraulic Ram to pump water.

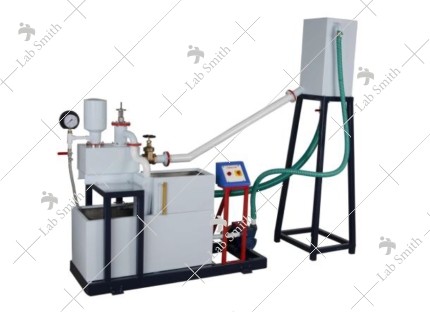

The set-up consists of a box incorporating pulse and non-return valves and a supply reservoir on a stand which is fed by the overhead tank. An air vessel above the valve chamber smoothes cyclic fluctuations from the Ram delivery. Different pressure may be applied to the pulse valve to change the closing pressure and hence the operating characteristic.

EXPERIMENTATION:

• To find out discharge of useful water and waste water.
• To find out the efficiency of the Hydraulic ram.

UTILITIES REQUIRED:

• Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.
• Water Supply (Initial Fill)
• Floor Drain required.
• Floor Area Required: 1.5 m x 0.75 m

TECHNICAL DETAILS:
