DESCRIPTION:

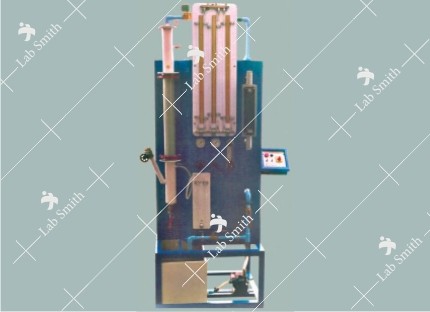

The set-up consists of a glass column. Arrangement is made for changing the glass column conveniently and filling it with any type of packing required. Air from a regulated pressure vessel passes through a sparger and allowed to enter in the column at the top. Liquid is feed from a tank, fitted with a pump and is distributed at the top of a column using a spray nozzle. Set-up is fully accompanied with manometers required. Solenoid valves are provided in the feed line at the top of column for instant release and close. The flow rate can be adjusted by operating the valves provided in respective line.

EXPERIMENTATION:

To determine Hydrodynamics of a Trickle Bed Reactor involving the measurement of pressure drop, hold-up & flow regime.

UTILITIES REQUIRED:

Compressed Air at 4 Bar.
Water Supply
Floor Drain.
Electricity-0.5kw, Single.

 TECHNICAL DETAILS:

Packed Bed	Material Borosilicate Glass Dia. 80mm,Height 600mm
Packings	Glass Beads Dia. 3mm/Rasching Rings,size 8-10mm
Flow measurement	Rotameter (one each for water and air).
Liquid Feed Tank	Material Stainless Steel Capacity 60 Ltrs.
Feed Circulation	Centrifugal Pump capacity ¼ HPCrompton/Sharp make.
Air Tank	Compatible Capacity.
Pressure Regulator (2 Nos.)	Operating range 0-2 kg/cm2 and 0-10 Kg/cm2
Pressure Gauge	Bourdon Type.
Mixing Chamber	Material Stainless Steel of CompatibleCapacity for Air & Water
Liquid Catch Pot	Material Stainless Steel of Compatible Capacity.
Solenoid Valve	2 Nos. (One each at Liquid and air inlet).
Manometers	Compatible capacity.
Piping	Material Stainless Steel and PVC, ½” Line size.
Control Valves	Material Gun Metal/Brass
Control panel comprises of	Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No.	Description
JICRE-017	HYDRODYNAMICS OF TRICKLE BED REACTOR
