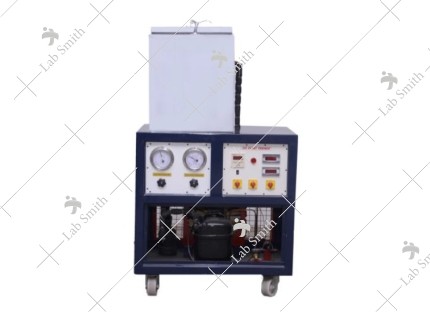

ICE PLANT TRAINER

ICE PLANT TRAINER

More Views

ICE PLANT TRAINER

Code:

DESCRIPTION:

The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.

EXPERIMENTATION:

To study the working of Ice Plant.
To Study the refrigerator circuit.
To Calculate Co-efficient of performance

UTILITIES REQUIRED:

Electric supply : Single Phase, 220V AC, 50 Hz, 10 Amp with earth connection .
Water supply and drainage
Floor area : 1.5 m x 1m
Ethyl Glycole : 25 Ltr.

TECHNICAL DETAILS:

Compressor	Hermitically sealed compressor, Kirloskar make.
Tank	The inner tank shall be fabricated out of stainless steel
Condenser	Air cooled compatible to compressor
Condenser Cooling Fan	Compatible capacity with permanent lubricated motor.
Evaporator	Made of Stainless Steel, Insulated with ceramic wool/puf.
Expansion Device	Capillary Tube Compatible capacity.
Pressure Gauges	2 Nos.
Safety Control	overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor	RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter	0-300 V
Digital Ammeter	0-5 Amp.
Temperature Measurement	Digital Temperature Indicator with multi-channel switch.
All Other accessories like filter drier will be provided.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JRAC-006	ICE PLANT TRAINER

Description

Details

DESCRIPTION:

The unit enables the students to study the Basic Principals of ice plant cycle within a short period. The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. Ice cans are kept in liquid tank, which is cooled by the refrigerant evaporator. As conventional ice plants take 12-24 hours to complete the cycle, this ice plant is specially designed to demonstrate process of ice formation to be complete within period of 4 hours and hence it is most suitable for laboratory use.

EXPERIMENTATION:

To study the working of Ice Plant.
To Study the refrigerator circuit.
To Calculate Co-efficient of performance

UTILITIES REQUIRED:

Electric supply : Single Phase, 220V AC, 50 Hz, 10 Amp with earth connection .
Water supply and drainage
Floor area : 1.5 m x 1m
Ethyl Glycole : 25 Ltr.

TECHNICAL DETAILS:

Compressor	Hermitically sealed compressor, Kirloskar make.
Tank	The inner tank shall be fabricated out of stainless steel
Condenser	Air cooled compatible to compressor
Condenser Cooling Fan	Compatible capacity with permanent lubricated motor.
Evaporator	Made of Stainless Steel, Insulated with ceramic wool/puf.
Expansion Device	Capillary Tube Compatible capacity.
Pressure Gauges	2 Nos.
Safety Control	overload and over current protectors for compressor and Time delay circuit.
Temperature Sensor	RTD PT-100 Type.
Control Panel comprises of
Digital Voltmeter	0-300 V
Digital Ammeter	0-5 Amp.
Temperature Measurement	Digital Temperature Indicator with multi-channel switch.
All Other accessories like filter drier will be provided.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JRAC-006	ICE PLANT TRAINER
