DESCRIPTION:

The setup consists of a two sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a hemispherical cup.

EXPERIMENTATION:

•  To measure the force developed by a jet of water impinging upon a stationary object and comparison with the forces predicted by the momentum theory.

UTILITIES REQUIRED:

• Hydraulic Bench.

TECHNICAL DETAILS:

An ENGLISH instruction manual consisting of experimental procedures, block diagram etc.

will be provided along with the Apparatus

Ordering Details:

Catalogue No

Description

JIHD-055

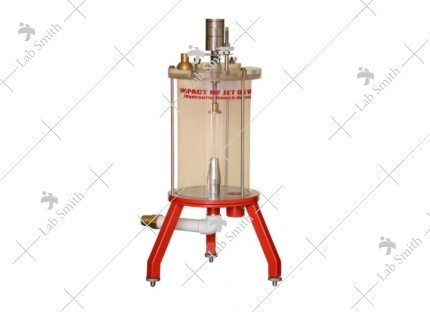

IMPACT OF JET ON VANES (Hydraulic Bench Accessory)
