IMPACT OF JET ON VANES

Code:

DESCRIPTION:

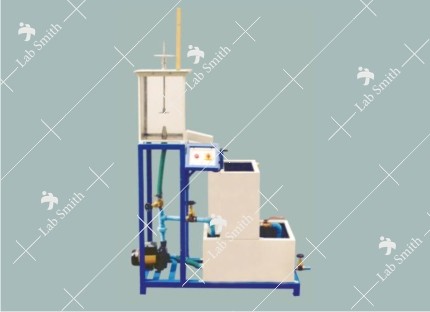

The setup consists of a clear Acrylic fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem, which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring.

The vertical force exerted on the target plate is measured for applied weights. Two targets cups are provided with the setup (flat plate and hemispherical cup).

EXPERIMENTATION:

 To measure the force developed by a jet of water upon a target (Hemispherical cup or Flat Plate) and comparison with the forces predicted by the momentum theory.

UTILITIES REQUIRED:

Water Supply.
Floor Drain.
Electricity 0.5 kW, 220V AC, Single Phase.
Floor Area 1.5 x 0.75 m.

TECHNICAL DETAILS:

Target (2 Nos.)	Flat Plate and Hemispherical Cup
Nozzle	Material Brass
Jet Enclosure	Made of Acrylic
Water Circulation	FHP Pump, Standard make
Flow Measurement	Using Measuring Tank with Piezometer, Capacity 25 Ltrs.
Sump Tank	Capacity 50 Ltrs.
Stop watch	Electronic.
Control Panel Comprises of	Standard make On/Off Switch, Mains Indicator, etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-004	IMPACT OF JET ON VANES
