CRE Lab- homogeneous

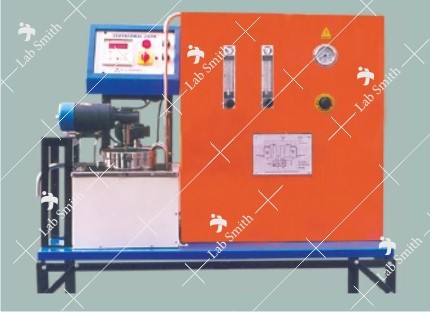

In an ideal CSTR (i.e. an ideal steady state flow reactor) the contents in reactor are well mixed and have uniform composition throughout. Thus the exit stream has the same composition as the fluid within the reactor. This type of reactor is known as mixed flow reactor. This set-up is used to study a non-catalytic homogeneous second order liquid phase reaction under isothermal condition. The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. The CSTR is fitted with stirrer for proper mixing. From top outlet of it samples are collected for analysis. Constant temperature water bath arrangement is provided to conduct the experiment at various temperatures. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.

EXPERIMENTATION:

1. Sponification Reaction study in Isothermal CSTR.

2. To determine the Reaction Rate Constant and effect of temperature on it.

UTILITIES REQUIRED:

• Compressed Air Supply at 2 Bar, 0.5 CFM. Water Supply.
• Floor Drain.
• Electricity Supply : 1 Phase, 220 V AC, 1.5 kW.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.

 TECHNICAL DETAILS:

Ordering Details:

JICRE-002A

ISOTHERMAL CONTINUOUS STIRRED TANK REACTOR

(Compressed Air Feed System)
