DESCRIPTION:

CRE Lab- homogeneous

In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. In case of a coil turbulence is introduced due to frequent change in direction of flow and presence of secondary flow, so a higher value of reaction rate constant is expected in coil tube type plug flow reactor. This set-up is used to study a non-catalytic homogeneous reaction under isothermal condition.

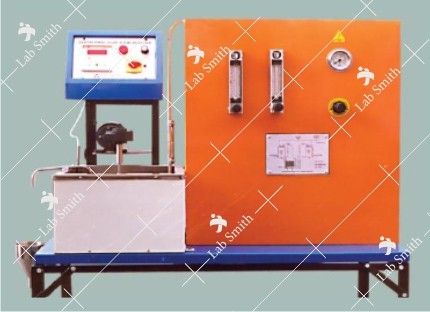

The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. It is a helical coil tube type reactor kept in a constant temperature water bath to conduct the experiment at various temperatures. Reactants enter at lower end coming out of the top of coil from where samples are collected for analysis. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.

EXPERIMENTATION:

1. Sponification Reaction study in Isothermal Plug Flow Reactor.
2. To determine Reaction Rate Constant and effect of temperature on it.

UTILITIES REQUIRED:

• Compressed Air Supply at 2 Bar, 0.5 CFM.
• Water Supply
• Floor Drain. Electricity-1.5kw, Single.
• Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.

TECHNICAL DETAILS:

Reactor

Material Stainless Steel, Capacity (0.6-0.7) Ltrs. (approx)

(Helical Coiled Tube Type)

Stirrer

(Water Bath)

Material SS Impeller and shaft coupled with FHP motor

Digital Temp.
Controller

0-200°C, RTD PT-100 type (For Water Bath) Standard make on/off switch,
Mains Indicator etc.

Ordering Details:

JICRE-006A

ISOTHERMAL PLUG FLOW TUBULAR REACTOR

(Coiled Tube Type)(Compressed Air Feed System)
