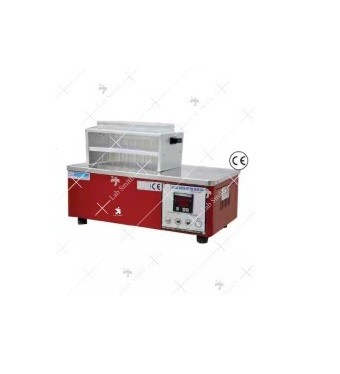

Kjeldahl Dry Block Digestor -437

Applications & Key Features

• Designed for high temperature multi-function dry bath heating Precise temperature control from ambient +5^OC to 450 ^OC with +1^OC accuracy
• User's self compensation function for temperature to counter for difference between block temperature and sample temperature.
• Fitted with Microprocessor Based Digital Temperature Indicator-cum-Controller for auto control with respect to time and temperature and is also fitted with IN-BUILT BUZZER TIMER for AUTO CONTROL to indicate cycle end.
• Microprocessor Based Digital Temperature Indicator cum-Controller having individual display for set value and process value.
• Over temperature protector works as a safety device.
• Fitted with ELCB for current leakage protection
• Size of Heating Block: 300mm(L) x 200mm(W) x 80mm(D)
• High performance and user friendly controls combine to produce a specification which offers exceptional efficiency and reliability. The benefit to you-convenient, no fuss heating!
• Excellent temperature control.
• Uniform and stable heating.
• New compact size.

Technical Specifications:

• Controller: Microprocessor Based Digital Temperature Indicator-cum-Controller
• Display: LED with set value (SV) and Process Value (PV)
• BLOCK DIMENSIONS: 300mm(L) x 200mm(W) x 80mm(D)
• Heater Load: 2.0 KW
• Tube Cavity Size: 25m x 60m(D)
• No. of Cavities: 40 holes
• Tube Size: 24mm x 300mm (LENGTH)
• Sample Size: 75 ml
• Temperature Range: Ambient +5^OC to 450^OC
• Temperature Accuracy: +2^OC
• Sensor: Fe-K Thermocouple
• Material (External): Powder Coated CRC Steel
• Material (Block): Polished Aluminium
• Tube Rack: 1 No.
• Safety Device: Over Temp. & Over Current Protector
• Power supply: 230V AC, 50/60Hz
