- Description
-
Details

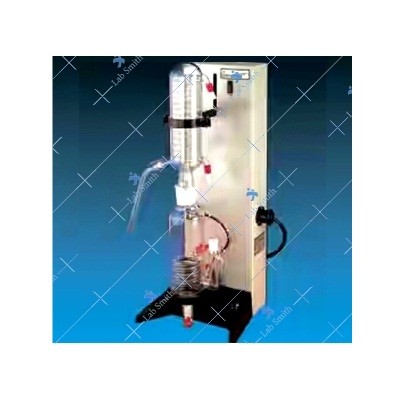

Lab Mini Quartz Distiller
Water Distillation Unit
Improved Models
- Larger Boiling space resulting in more balanced boiling Better quality of distillate.
- Better condensing area - Cooler distillate temperature
- Larger Quartz sheath, hence easy of replacement of heater element in case of burn out.
- Rust proof sturdy Aluminium stand as base.
- Ring Clamp with seating to house the Quartz Boiler.
- Condenser clamp facilitates telescopic adjustments and helps in perfect alignment of the system and installation of the equipment.
Advantages
The distiller along with the specially designed borosilicate / quartz condenser (optional) is absolutely Thermal Shock Proof - a property well known of Fused Quartz. The Design of the equipment renders it compact and portable. The boiler has a drain vent to ensure in-situ cleaning of the boiler. The MQD-Panel Series yields ample distilled water for use in laboratory. The equipment can be effectively used for distilling water. The Boiler is made of Electronic Grade Quartz and Options for Condenser are Borosilicate / Quartz.
Advanced Features
- Pyrogen free.
- Free of heavy metals.
- Designed for pollution free distillate.
- Instant distilled water flow. Switch on time less than a minute.
- Quartz Boiler (SiO2) is chemically inert to most solvents and acids, hence purer distillate.
- No heat loss in the boiler, hence saves electrical power.
- High performance with low maintenance.
- Safety Cut-out (Optional at extra cost)
Ordering Information with technical specifications
(Quartz Boiler and Borosilicate Condenser)
Cat. No.
Output Capacity (approx.)
Power Rating
Cooling Water
Consumption (approx.)
LMQD-01-B
Lab Mini Quartz Distiller 1 ltr/hr
1 KW
1 ltrs/min
LMQD-02-B
Lab Mini Quartz Distiller 2 ltr/hr
1.65 KW
1.5 ltrs/min
LMQD-03-B
Lab Mini Quartz Distiller 3 ltr/hr
2.4 KW
1.75 ltrs/min
LMQD-04-B
Lab Mini Quartz Distiller 4 ltr/hr
3 KW
2 ltrs/min
LMQD-05-B
Lab Mini Quartz Distiller 5 ltr/hr
4 KW
2.5 ltrs/min
LMQD-08-B
Lab Mini Quartz Distiller 8 ltr/hr
6 KW
4 ltrs/min
LMQD-10-B
Lab Mini Quartz Distiller 10 ltr/hr
8 KW
6 ltrs/min
Spares for Above Water Distillation Units:
Cat. No.
Description
Cat. No.
Description
LMQD-QB-01
Quartz Boiler
LMQD-BC-05
Borosilicate Condenser
LMQD-QB-02
Quartz Boiler
LAQD-BC-08
Borosilicate Condenser
LMQD-QB-03
Quartz Boiler
LAQD-BC-10
Borosilicate Condenser
LMQD-QB-04
Quartz Boiler
LMQD-HE-01
Heating Element
LMQD-QB-05
Quartz Boiler
LMQD-HE-02
Heating Element
LMQD-QB-08
Quartz Boiler
LMQD-HE-03
Heating Element
LMQD-QB-10
Quartz Boiler
LMQD-HE-04
Heating Element
LMQD-BC-01
Borosilicate Condenser
LMQD-HE-05
Heating Element
LMQD-BC-02
Borosilicate Condenser
LMQD-HE-08
Heating Element
LMQD-BC-03
Borosilicate Condenser
LMQD-HE-10
Heating Element
LMQD-BC-04
Borosilicate Condenser
Ordering Information with technical specifications
(Quartz Boiler and Quartz Condenser)
Cat. No.
Output Capacity (approx.)
Power Rating
Cooling Water
Consumption (approx.)
LMQD-01-Q
Lab Mini Quartz Distiller 1 ltr/hr
1 KW
1 ltrs/min
LMQD-02-Q
Lab Mini Quartz Distiller 2 ltr/hr
1.65 KW
1.5 ltrs/min
LMQD-03-Q
Lab Mini Quartz Distiller 3 ltr/hr
2.4 KW
1.75 ltrs/min
LMQD-04-Q
Lab Mini Quartz Distiller 4 ltr/hr
3 KW
2 ltrs/min
LMQD-05-Q
Lab Mini Quartz Distiller 5 ltr/hr
4 KW
2.5 ltrs/min
LMQD-08-Q
Lab Mini Quartz Distiller 8 ltr/hr
6 KW
4 ltrs/min
LMQD-10-Q
Lab Mini Quartz Distiller 10 ltr/hr
8 KW
6 ltrs/min
Spares for Above Water Distillation Units:
Cat. No.
Description
Cat. No.
Description
LMQD-QB-01
Quartz Boiler
LMQD-QC-05
Quartz Condenser
LMQD-QB-02
Quartz Boiler
LAQD-QC-08
Quartz Condenser
LMQD-QB-03
Quartz Boiler
LAQD-QC-10
Quartz Condenser
LMQD-QB-04
Quartz Boiler
LMQD-HE-01
Heating Element
LMQD-QB-05
Quartz Boiler
LMQD-HE-02
Heating Element
LMQD-QB-08
Quartz Boiler
LMQD-HE-03
Heating Element
LMQD-QB-10
Quartz Boiler
LMQD-HE-04
Heating Element
LMQD-QC-01
Quartz Condenser
LMQD-HE-05
Heating Element
LMQD-QC-02
Quartz Condenser
LMQD-HE-08
Heating Element
LMQD-QC-03
Quartz Condenser
LMQD-HE-10
Heating Element
LMQD-QC-04
Quartz Condenser
