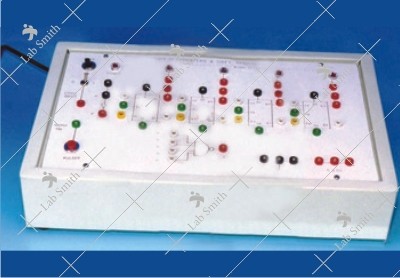

Logic Gate Circuit Trainer

Study and verification of Flip flops, Counters, Shift Registers, Encoders, Decoders, Multiplexers and De-multiplexers. Consists of 8 Debounced logic inputs, 8 red LED output indicators, + 5 V D. C. / 1Amp regulated short circuit and overload protected power supply, 1 Hz monoshot clock pulse. All the IC’s and components have been placed inside the cabinet and connections brought out at 2 mm sockets.

Ordering Information:
