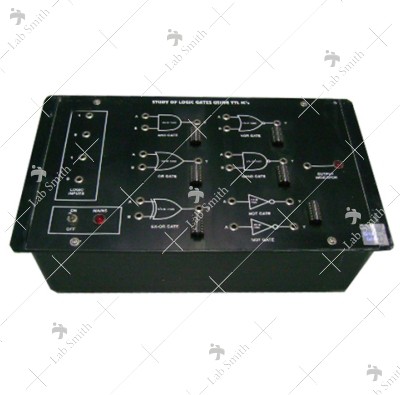

We are a respected supplier of Logic Gates Using Six Ttl Ics 6 In 1 A to our highly valued clients. It finds application in digital electronics lab as per the requirements of our patrons. It is designed using superior quality raw material and modern machinery at our vendors’ unit in adherence with the industrial prevailing norms and standards. Logic Gates Using Six Ttl Ics 6 In 1 A stands high on quality, accuracy, performance, durability and strength, leading to high rising demands in the market.

Objective:

2 input IC Basic Logic Gates Apparatus has been designed to verify the truth tables of the following Gates:

• AND Gate (IC 7408)

• OR Gate (IC 7432)

• NOT Gate (IC 7404)

• EX-OR Gate (IC 7486)

• NAND Gate (IC 7400)

• NOR Gate (IC 7402)

• EX-NOR Gate (EX-OR + NOT Gate)

Technical Specifications:

• Inbuilt Fixed / Variable DC Regulated Power Supply

Output Voltages: 5VDC

IC’s & Components Provided

IC

• 7408

• 7432

• 7404

• 7486

• 7400

• 7402

Logic Input (0 & 1): 2 No.s (Each)

Output Indicator: 1 Nos.

• Glass Epoxy PCB used as front panel of 270mm x 170mm & mounted on light Weight shock proof plastic cabinet

• Circuit diagram printed on Glass Epoxy PCB & all important IC’s & test points are brought out on front panel

• Power requirement: 230 VAC 10%, 50Hz.

• Weight: 1.0 Kg Approx.

• Dimensions (mm): 300( L) x 175(B) x 75(H)

Standard Accessories:

• Power chord, Patch chords & Instruction manual
