LOSSES DUE TO PIPE FITTINGS, SUDDEN ENLARGEMENT & CONTRACTION (Hydraulic Bench Accessory)

LOSSES DUE TO PIPE FITTINGS, SUDDEN ENLARGEMENT & CONTRACTION (Hydraulic Bench Accessory)

More Views

LOSSES DUE TO PIPE FITTINGS, SUDDEN ENLARGEMENT & CONTRACTION (Hydraulic Bench Accessory)

Code:
DESCRIPTION:

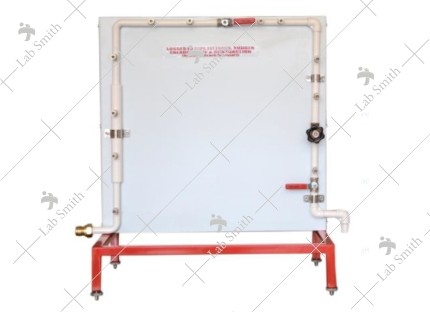

The set up consists of a 1/2” bend and elbow, sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fittings. The set-up can be connected to Hydraulic Bench by flexible pipe line.

EXPERIMENTATION:
  • To determine loss of head in the fittings at various water flow rates.
  • To determine the loss co-efficient for the pipe fittings.
  • Comparing the Pressure drop across each device.
UTILITIES REQUIRED:
  • Hydraulic Bench.
TECHNICAL DETAILS:
Sudden Enlargement From 15mm to 25mm
Sudden Contraction From 25mm to 15mm.
Bend ½”
Elbow ½”
Ball valve ½”
Gate valve ½”
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No Description
JIHD-057

LOSSES DUE TO PIPE FITTINGS, SUDDEN
ENLARGEMENT & CONTRACTION (Hydraulic Bench Accessory)


Description

Details

DESCRIPTION:
The set up consists of a 1/2” bend and elbow, sudden expansion & sudden contraction fitting from 15mm to 25mm, ball valve and gate valve. Pressure tapings are provided at inlet and outlet of these fittings under test. A differential manometer fitted in the line gives pressure loss of individual fittings. The set-up can be connected to Hydraulic Bench by flexible pipe line.

EXPERIMENTATION:
  • To determine loss of head in the fittings at various water flow rates.
  • To determine the loss co-efficient for the pipe fittings.
  • Comparing the Pressure drop across each device.
UTILITIES REQUIRED:
  • Hydraulic Bench.
TECHNICAL DETAILS:
Sudden Enlargement From 15mm to 25mm
Sudden Contraction From 25mm to 15mm.
Bend ½”
Elbow ½”
Ball valve ½”
Gate valve ½”
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No Description
JIHD-057

LOSSES DUE TO PIPE FITTINGS, SUDDEN
ENLARGEMENT & CONTRACTION (Hydraulic Bench Accessory)
