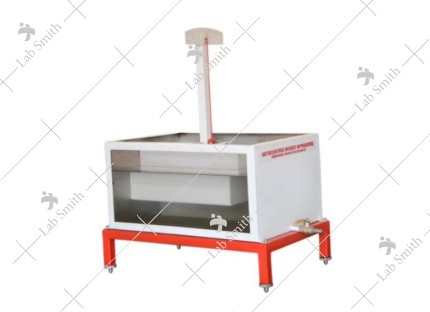

DESCRIPTION:A pontoon is allowed to float in a small tank having a transparent side. Removable steel strips placed in the model for the purpose of changing the weight of the model. Displacement of weight is measured with the help of a scale. By means of a pendulum (consisting of a weight suspended to a long pointer) the angle of tilt can be measured on a graduated arc.For tilting the ship model, a cross bar with two movable hangers is fixed on the model. Pendulum and graduated arc are suitably fixed at the center of the cross bar. A set of weights is supplied with the apparatus.EXPERIMENTATION:- Determination of the metacentric height and position of the metacentric height with angle of heel of ship model.
UTILITIES REQUIRED:- Hydraulic Bench.
TECHNICAL DETAILS:Pontoon Size 350 x 200 x 475 mm (approx.) Angle of Heel ± 130 (max.) Corresponding Linear Dimension ± 90 mm (approx.) Front Window of Tank Made of Perspex. A set of weights is supplied with the apparatus. Tanks will be made of Stainless Steel. Pendulum and graduated arc are for accurate measurement of Tilt angle. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:Catalogue No Description JIHD-061 METACENTRIC HEIGHT APPARATUS(Hydraulic Bench Accessory) - Additional Information
-
