Microprocessor Dissolved Oxygen Meter

More Views

Microprocessor Dissolved Oxygen Meter

Code:

Microprocessor Dissolved Oxygen Meter

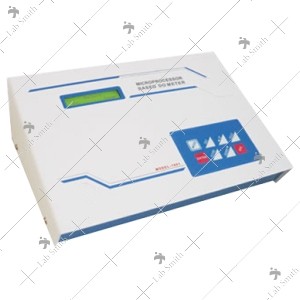

Microprocessor Based Dissolved Oxygen Meter Mode – LS 1801 is a solid state instrument designed to provide the precise DO and Temperature measurements. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts, which guide you throughout measurements process.

The system has 8 soft touch membrane keys for ease of operation, it has the storage facility for 1000 samples, which are retained in the memory even when the system is switched OFF. Provision has also been made for attachment of centronics parallel port dot-matrix printer so that any of the stored results can be printed.

This is extremely useful for agriculture and soil analysis laboratories, fisheries, water quality control in boiler feed water, water works department, breweries, water purification plants, chemical & pharmaceutical industries etc.

Features

  • Highly Stable & Accurate
  • 16×2 Line Alphanumeric LCD
  • 1000 Sample Storage Facility
  • Printer Attachment Facility
  • Auto/Manual Calibration
  • D.O & Temperature Measurements

Ordering Information with Technical Specifications

Catalogue No. LS 1801
Range DO: 0 – 20 ppm
Temp.: 0 – 100 °C
Resolution DO: 0.1 ppm
Temp.: 0.1 °C
Accuracy DO: ± 0.2 ppm
Temp.: ± 0.2 °C
Temp. Comp. 0 – 50 °C (Auto/Manual)
Display 16×2 Line Alphanumeric LCD with Backlit
Keyboard 8 Keys, Soft Touch Membrane Type
Printer Provision for attachment of any dot-matrix with centronics interface
Storage Upto 1000 Samples
Power 230 V ± 10% AC, 50 Hz
Dimensions 275 x 180 x 80 mm (L x B x H) (Approx.)
Weight 2.5 Kg (Approx.)
Accessories Do Probe, Temperature Probe, Do Membranes, Stirrer, Magnetic Capsule, Mains Lead, Operation Manual and Dust Cover

Note : Specifications are subject to change due to continuous improvements.



Description

Details

Microprocessor Dissolved Oxygen Meter

Microprocessor Based Dissolved Oxygen Meter Mode – LS 1801 is a solid state instrument designed to provide the precise DO and Temperature measurements. The instrument uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts, which guide you throughout measurements process.

The system has 8 soft touch membrane keys for ease of operation, it has the storage facility for 1000 samples, which are retained in the memory even when the system is switched OFF. Provision has also been made for attachment of centronics parallel port dot-matrix printer so that any of the stored results can be printed.

This is extremely useful for agriculture and soil analysis laboratories, fisheries, water quality control in boiler feed water, water works department, breweries, water purification plants, chemical & pharmaceutical industries etc.

Features

  • Highly Stable & Accurate
  • 16×2 Line Alphanumeric LCD
  • 1000 Sample Storage Facility
  • Printer Attachment Facility
  • Auto/Manual Calibration
  • D.O & Temperature Measurements

Ordering Information with Technical Specifications

Catalogue No. LS 1801
Range DO: 0 – 20 ppm
Temp.: 0 – 100 °C
Resolution DO: 0.1 ppm
Temp.: 0.1 °C
Accuracy DO: ± 0.2 ppm
Temp.: ± 0.2 °C
Temp. Comp. 0 – 50 °C (Auto/Manual)
Display 16×2 Line Alphanumeric LCD with Backlit
Keyboard 8 Keys, Soft Touch Membrane Type
Printer Provision for attachment of any dot-matrix with centronics interface
Storage Upto 1000 Samples
Power 230 V ± 10% AC, 50 Hz
Dimensions 275 x 180 x 80 mm (L x B x H) (Approx.)
Weight 2.5 Kg (Approx.)
Accessories Do Probe, Temperature Probe, Do Membranes, Stirrer, Magnetic Capsule, Mains Lead, Operation Manual and Dust Cover

Note : Specifications are subject to change due to continuous improvements.
