Over the years of dedication we have been a reputed supplier of Motor Series Dc - 220 Volt, 0.5 To 2 Hp to our highly valued clients. It is designed using superior quality raw material and ultra modern machinery at our unit in sync with the prevailing industrial norms and standards. Motor Series Dc - 220 Volt, 0.5 To 2 Hp has gained us huge appreciation in the market. We offer it at pocket- friendly prices among our competitors.

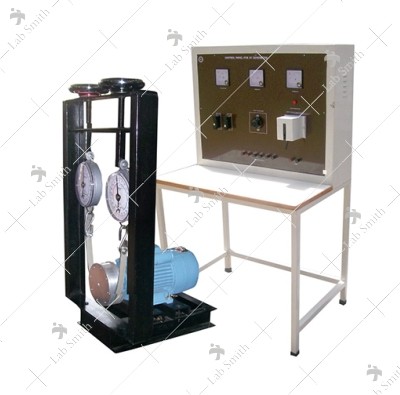

A laboratory type model for conducting various experiments.

TECHNICAL SPECIFICATION:

MOTOR :

• 2 HP,220 volts,1500 RPM coupled with mechanical on load, ‗F' class insulation, continuous rating S.P.D.P.type, horizontal foot mounted.
• Educational type Suitable friction brake Dynamometer set having 2 Nos.
• 6 dial type spring balances & belt provided with fixed with motor base plate.

Control Desk:

• The Control desk consists of an Instrument panel and working area.
• The control desk made of 30mm x 30mm x 1.6mm tubular mild steel and MS sheet of 1 mm thickness, Siemens Grey     colour powder coated with wooden top on the working area.
• The overall dimensions W = 900 mm; D = 625 mm ; H = 1500 mm.
• The Box type Instrument Panel above the working area and  of size W = 900 mm ; D = 250 mm ; H = 750 mm & Front side  of 6mm thick bakelite sheet of brown colour and  fitted at inside of the tube structure.
• All other sides made of MS sheet, Two sides of the panel are to be perforated for air ventilation.
• Back side in the form of hinged door with suitable locking arrangement.
• The working area top fitted in front of the Instrument Panel at a height of 750 mm from bottom.
• The top of W = 900 mm x D = 375mm and made of 19mm marine plywood fitted with 3 mm Ivory colour edhylam sheet on top.
• The three sides of the working top lipped using 22mm x 6mm teakwood lipping patti.
• 30 A. Educational type back elite insulated banana terminals provided for supply and motor connection.
• Circuit diagram of panel provided inside the panel.
• All accessories connected with internal wiring ferrules etc.

 The Instrument Panel consist of following accessories :

• Two point starter suitable foe series D.C. motor flush mounted.
• Indicating lamp, LED type 12mm size for incoming & outgoing supply.
• DPST knife Switch, 20 A,
• D.C.M.C. Ammeter 0-10A,96 x 96 mm sq. type, flush type Mars make
• D.C.M.C. voltmeter 0-300 v, 96 x 96 mm sq. type, flush type Mars make
• Fuses kitkat 16 A, 500 v inside the panel.

BASE PLATE:

Motor with mechanical load will be mounted on fabricated base plate of M.S. Motor with mechanical load mounted on fabricated base plate of M.S.'C' channel 100 mm x 50 mm x 6 mm thick, with suitable anti vibration mounts.

PAINT:

Motor painted with two layers of smoke gray oil paint. & control panel powder coated.
