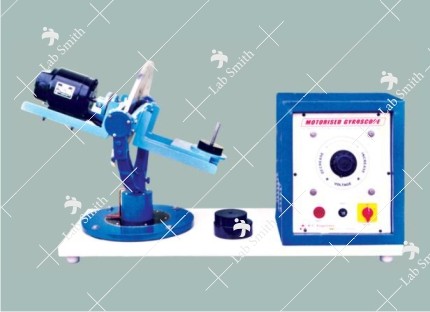

DESCRIPTION:The set up consists of stainless steel disc mounted on a horizontal shaft, rotated by a variable speed motor. The rotor shaft is coupled to a motor mounted on a trunion frame having bearings in a yoke frame, which is free to rotate about vertical axis. A weight pan on other side of disc balances the weight of motor. Rotor disc can be move about three axis. Torque can be applied by calculating the weight and distance of weight from the center of rotor. The gyroscopic couple can be determined.EXPERIMENTATION:- Experimental justification of the equation T = I. ώ. ώp. for calculating the gyroscopic couple by observation and measurement of results for independent vibrations in applied couple T and precession ώp.
- To study the gyroscopic effect of a rotating disc.
UTILITIES REQUIRED:Electricity Supply : 230 V AC, Single Phase, 0.5 kWBench area : 1m x 0.5mDigital TachometerTECHNICAL DETAILS:Disc Material : Stainless Steel,Dia 300 mm x 10 mm thick precisely balanced which can be rotated in 3 mutually perpendicular axis. Motor Variable speed of standard make.Supplied with Speed Control Unit. Weights 2 kg, 1 kg, 500 gms. Stop Watch Electronic OPTIONAL Digital Tachometer Accurately marked scale & pointer to measure precession rate. An ENGLISH instruction manual will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:Catalogue No Description JTOM-005A MOTORISED GYROSCOPE - Additional Information
-
Additional Information
Code No - Reviews
-
