DESCRIPTION:

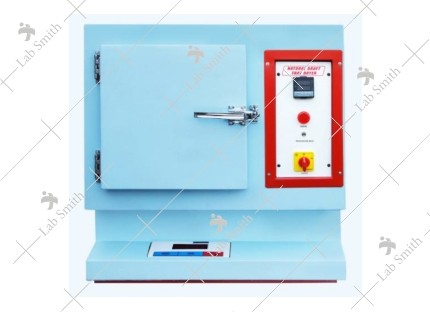

Natural Draft Tray Dryer is a dryer in which moisture removal takes place by heat under natural condition. The set-up consists of an insulated Stainless Steel chamber fitted with heater. Inside the chamber a tray is attached directly to an electronic weighing balance, which is fitted on the bottom, outside the chamber. Material for drying is placed in the tray and regular loss of weight is monitored. Temperature controller fitted in the set-up maintains the required temperature in the chamber.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To study the drying characteristics of a solid material under batch drying condition.
• Determination of drying rate and to plot moisture lost with time under for different operating conditions.

UTILITIES REQUIRED:

• Electricity Supply: 1 Phase, 220 V AC, 2 kW.
• Drying Solids.
• Table for setup support
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:
