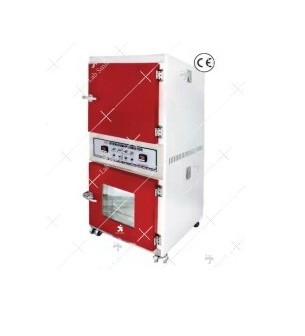

Oven and Incubator Combined -221

More Views

Code:

Oven and Incubator Combined -221

Benefits & Advantages

Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various Institutes, industries, R & D labs etc.
Synthetic door gasket made of neoprene on the double walled door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Adjustable two ventilation slides control inner air/ vapour circulation.
Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

Constructional Features

Outer body made up of mild steel sheet duly powder coated.
Inner chamber and perforated trays made of Stainless Steel (SS-304)
Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
Mounted on caster wheels for easy portability.
Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
To work on 220/230V AV, 50/60 Hz supply

Technical Specifications

No. of Shelves (in each chamber): 2
Temperature Range: 50^OC to 250^OC (For Oven) & Ambient +50^OC to 70^OC (for Incubator)
Safety Device: Over temperature limiter switch prevents overheating
Type: Available with forced convection system
Temp. Controller: Microprocessor Based PID Digital Temperature Indicator-cum- Controller
OR Microprocessor Based PID Digital Temperature Indicator-Cum-Controller with display in-built digital timer to control the temperature from 50OC to 250OC (For Oven) & Ambient +50OC to 70OC (For Incubator). Once the unit is switched 'ON' heating starts Automatically and once the set/ desired value is achieved the in built AUTOMATIC DIGITAL MINUTE TIMER starts automatically.Once this set time period is over the heaters are switched "OFF"Automatically and the unit sounds a BUZZER
Temp. Accuracy: + 1OC
Regulator: Solid state electronic relay with protective heat sink

Ordering Information

Cat. No.	Capacity Ltrs.	Internal Dimensions (WxDxH) mm	Heat Load	Controller Type
LI-20200/1	Oven and Incubator Combined, 45 ltrs+45ltrs	355 x 355 x 355 mm	1.25 KW	Microprocessor
LI-20200/2	Oven and Incubator Combined, 95 ltrs+95ltrs	455 x 455 x 455 mm	2.50 KW	Microprocessor
LI-20200/3	Oven and Incubator Combined, 125 ltrs+125ltrs	455 x 455 x 605 mm	2.50 KW	Microprocessor
LI-20200/4	Oven and Incubator Combined, 224 ltrs+224ltrs	605 x 605 x 605 mm	3.75 KW	Microprocessor
LI-20200/5	Oven and Incubator Combined, 45 ltrs+45ltrs	355 x 355 x 355 mm	1.25 KW	SAD Controller
LI-20200/6	Oven and Incubator Combined, 95 ltrs+95ltrs	455 x 455 x 455 mm	2.50 KW	SAD Controller
LI-20200/7	Oven and Incubator Combined, 125 ltrs+125ltrs	455 x 455 x 605 mm	2.50 KW	SAD Controller
LI-20200/8	Oven and Incubator Combined, 224 ltrs+224ltrs	605 x 605 x 605 mm	3.75 KW	SAD Controller

Description

Oven and Incubator Combined -221

Benefits & Advantages

Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
Most ideal for various experiments in microbiology, cell cultivation of animals and plants and food for various Institutes, industries, R & D labs etc.
Synthetic door gasket made of neoprene on the double walled door.
User oriented design of shelves makes you adjust each space of shelves without difficulty.
Adjustable two ventilation slides control inner air/ vapour circulation.
Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.

Constructional Features

Outer body made up of mild steel sheet duly powder coated.
Inner chamber and perforated trays made of Stainless Steel (SS-304)
Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
Mounted on caster wheels for easy portability.
Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
To work on 220/230V AV, 50/60 Hz supply

Technical Specifications

No. of Shelves (in each chamber): 2
Temperature Range: 50^OC to 250^OC (For Oven) & Ambient +50^OC to 70^OC (for Incubator)
Safety Device: Over temperature limiter switch prevents overheating
Type: Available with forced convection system
Temp. Controller: Microprocessor Based PID Digital Temperature Indicator-cum- Controller
OR Microprocessor Based PID Digital Temperature Indicator-Cum-Controller with display in-built digital timer to control the temperature from 50OC to 250OC (For Oven) & Ambient +50OC to 70OC (For Incubator). Once the unit is switched 'ON' heating starts Automatically and once the set/ desired value is achieved the in built AUTOMATIC DIGITAL MINUTE TIMER starts automatically.Once this set time period is over the heaters are switched "OFF"Automatically and the unit sounds a BUZZER
Temp. Accuracy: + 1OC
Regulator: Solid state electronic relay with protective heat sink

Ordering Information

Cat. No.	Capacity Ltrs.	Internal Dimensions (WxDxH) mm	Heat Load	Controller Type
LI-20200/1	Oven and Incubator Combined, 45 ltrs+45ltrs	355 x 355 x 355 mm	1.25 KW	Microprocessor
LI-20200/2	Oven and Incubator Combined, 95 ltrs+95ltrs	455 x 455 x 455 mm	2.50 KW	Microprocessor
LI-20200/3	Oven and Incubator Combined, 125 ltrs+125ltrs	455 x 455 x 605 mm	2.50 KW	Microprocessor
LI-20200/4	Oven and Incubator Combined, 224 ltrs+224ltrs	605 x 605 x 605 mm	3.75 KW	Microprocessor
LI-20200/5	Oven and Incubator Combined, 45 ltrs+45ltrs	355 x 355 x 355 mm	1.25 KW	SAD Controller
LI-20200/6	Oven and Incubator Combined, 95 ltrs+95ltrs	455 x 455 x 455 mm	2.50 KW	SAD Controller
LI-20200/7	Oven and Incubator Combined, 125 ltrs+125ltrs	455 x 455 x 605 mm	2.50 KW	SAD Controller
LI-20200/8	Oven and Incubator Combined, 224 ltrs+224ltrs	605 x 605 x 605 mm	3.75 KW	SAD Controller
