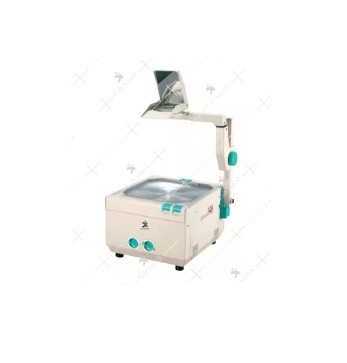

Overhead Projector (Deluxe Twin Lamp Model) -603

Application & Key Features

• Excellent contrast through 90mm single element uni-focal objective.
• Optimized brightness due to an optical system.

Constructions

• Anti-glare Fresnel-lens, Projection platform 285x285mm.
• Halogen lamp 24V/250W.
• Fine focusing with rack & pinion mechanism.
• Economy switches DIM/BRIGHT.
• Whisper quiet cooling Twin fan-maintains low temperature on the stage.
• Overheating device.
• Easy-to-open working top, push the lock and open to working top.
• Color fringe adjustment.
• Built-to-last, Rust proof, Shock proof durability un-matched, with all ABS body.
• Projector equipped with Twin Halogen Lamps with a lamp fail during a presentation the spare lamp can be quickly utilized.
• Safety-interlock system, automatically cut off power of unit while replacing lamp.
• Supplied with Writing pack, A-4 plain transparency 25No.s, 2No.s Glass fuse, Dust cover.

Technical Specifications:

• Power Supply: 220~240V, 50Hz
• Power Cable: 3.5meters
• Weight: 7.3Kg
• Dimensions: 415mm (L) x 380mm (W) x 225mm (H)
• Lumen: 2300
• Reflector: YES
• Rotating Projection: 360º
