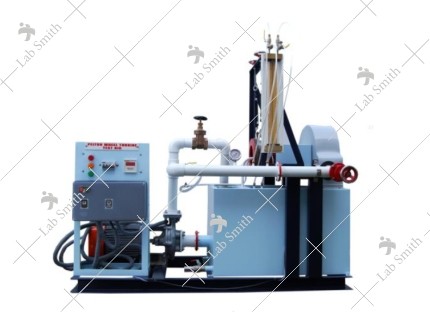

PELTON WHEEL TURBINE TEST RIG (Output Power 1 kW)

PELTON WHEEL TURBINE TEST RIG (Output Power 1 kW)

More Views

PELTON WHEEL TURBINE TEST RIG (Output Power 1 kW)

Code:

DESCRIPTION:

Pelton Wheel Turbine is only impulse water turbine now in common use named in honour of Sir L. A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The pressure at the inlet and outlet of the turbine is atmospheric. This turbine is used for high heads.

The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Flow of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is  supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.

EXPERIMENTATION:

To study the operation of a Pelton Wheel Turbine.
To determine the Output Power of Pelton Wheel Turbine.
To determine the Turbine Efficiency.

UTILITIES REQUIRED:

Water Supply and Drain.
Electricity 5 kW, 440V AC, Three Phase.
Floor Area 1.5 x 0.75 m

TECHNICAL DETAILS:

Output Power	1 KW
Discharge	350 LPM (Approx.)
Supply Head	30 m
Speed	1000 RPM (Approx.)
Nozzle	Material Stainless Steel.
Spear	Material Stainless Steel.
Dynamometer	Rope Brake type.
RPM measurement	Digital RPM Indicator with Proximity sensor.
Sump Tank	Capacity 200 Ltrs.
Water Circulation	Centrifugal Pump, Standard make, Capacity 5 HP, Three Phase, 2800 RPM
Discharge Measurement	Pitot Tube with Manometer
Control Panel Comprises of	L&T make Starter, Mains Indicator, MCB for overload protection.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-114B	PELTON WHEEL TURBINE TEST RIG (Output Power 1 kW)
