DESCRIPTION:

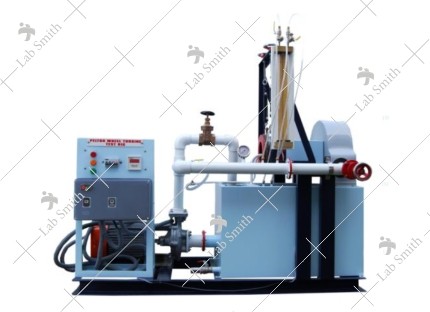

Pelton Wheel Turbine is only impulse water turbine now in common use named in honour of Sir L. A. Pelton (1829-1908) of California, USA. It is a tangential flow impulse turbine. The water strikes the buckets along the tangent of the runner. The energy available at the inlet of the turbine is only kinetic energy. The pressure at the inlet and outlet of the turbine is atmospheric. This turbine is used for high heads.

The present set-up consists of a runner. The buckets are mounted on the runner. The water is fed to the turbine, through SS nozzle with a SS spear, by means of Centrifugal Pump, tangentially to the runner. Flow of water into turbine is regulated by adjusting the spear position by the help of a given hand wheel. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the buckets. This runner assembly is supported by rigid MS structure. Load is applied to the turbine with the help of this brake dynamometer so that the efficiency of the turbine can be calculated. Pressure gauge is fitted at the inlet of the turbine to measure the total supply head to the turbine.

EXPERIMENTATION:

To study the operation of a Pelton Wheel Turbine.
To determine the Output Power of Pelton Wheel Turbine.
To determine the Turbine Efficiency.

UTILITIES REQUIRED:

Water Supply and Drain.
Electricity 15 kW, 440V AC, Three Phase.
Floor Area 2 x 1 m.

TECHNICAL DETAILS:

Output Power	3 KW
Discharge	750 LPM (Approx.)
Supply Head	45 m
Speed	1000 RPM (Approx.)
Impeller	Material Bucket type.
Nozzle	Material Stainless Steel.
Spear	Material Stainless Steel.
Dynamometer	Rope Brake type, Dia 300 mm.
RPM measurement	Digital RPM Indicator with Proximity sensor.
Sump Tank	Capacity 400 Ltrs.
Water Circulation	Centrifugal Pump (Kirloskar make),Capacity 15 HP, 3 Phase.
Discharge Measurement	Pitot Tube with Manometer.
Control Panel Comprises of	L&T make, fully automatic star/delta Starter, Mains Indicator, MCB for overload protection.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-114A	PELTON WHEEL TURBINE TEST RIG (Output Power 3 kW)
