DESCRIPTION:

CRE Lab- homogeneous

In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. This set-up is used to study a non-catalytic homogeneous reaction under ambient condition.

The set up consists of two feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. The compressed air is used for circulation of feed. Samples are collected for analysis from the outlet of reactor. Pressure Regulator, Pressure Gauge and Safety Valve are fitted in the compressed air line.

EXPERIMENTATION:

1. Sponification Reaction Study in straight tube Plug Flow Reactor.
2. To determine Reaction Rate Constant.

UTILITIES REQUIRED:

• Compressed Air Supply at 2 Bar, 0.5 CFM. Water Supply.
• Floor Drain.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.

TECHNICAL DETAILS:

Ordering Details:

Catalogue No.

Description

JICRE-005A

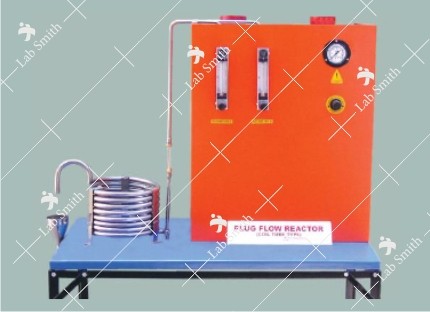

PLUG FLOW TUBULAR REACTOR (Coiled Tube Type)

(Compressed Air Feed System)
