DESCRIPTION:

CRE Lab- homogeneous

In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. This set-up is used to study a non-catalytic homogeneous reaction under ambient condition.

The set up consists of two overhead feed tanks through which two reactants are fed to the reactor. Rotameters are provided to measure the individual flow of Chemicals. The flow rate can be adjusted by operating the needle valves provided on respective Rotameter. A straight tube type reactor kept horizontally and inclined upward at outlet from where samples are collected for analysis.

EXPERIMENTATION:

1. Sponification Reaction Study in straight tube Plug Flow Reactor.
2. To determine Reaction Rate Constant.
3. To plot RTD curve for reactor

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted

TECHNICAL DETAILS:

Ordering Details:

Catalogue No.

Description

JICRE-004B

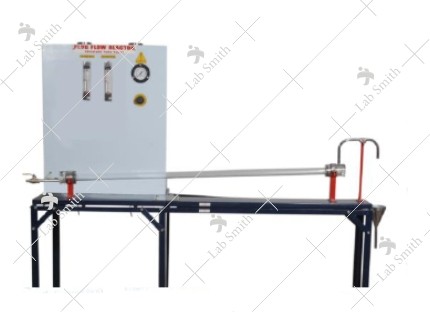

PLUG FLOW TUBULAR REACTOR (Straight Tube Type)

(Constant Head Feed System)
