DESCRIPTION:

CRE Lab- homogeneous

In an ideal Plug Flow Reactor (PFTR) there is no mixing in the direction of flow and complete mixing perpendicular to direction of flow. Concentration of reactants varies along the length of reactor but not in radial direction. This set-up is used to study a non-catalytic homogeneous reaction under ambient condition.

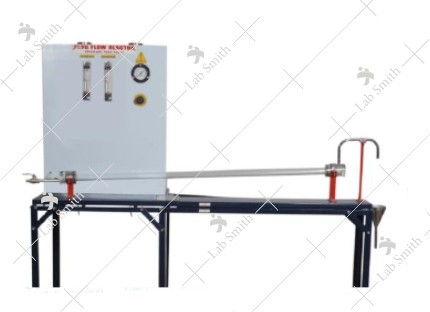

The set up consists of two feed tanks through which two reactants are fed to the reactor. Peristaltic pumps are provided to circulate the feed. A straight tube type reactor kept horizontally and inclined upward at outlet from where samples are collected for analysis.

EXPERIMENTATION:

1. Sponification Reaction Study in straight tube Plug Flow Reactor.
2. To determine Reaction Rate Constant.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.

TECHNICAL DETAILS:

Ordering Details:

JICRE-004C

PLUG FLOW TUBULAR REACTOR (Straight Tube Type)

 (Peristaltic Pump Feed System)
