- Description
-
Details

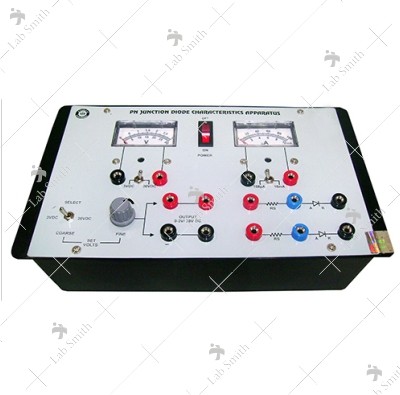

PN Junction Diode Characteristics Apparatus is analog electronic lab equipment for which we are a considered an eminent supplier to our highly respected clients. Supreme quality material and technologically advanced machinery is used in its making at our vendors’ unit in compliance with the prevailing industrial norms and standards. PN Junction Diode Characteristics Apparatus hence stands high on quality, strength, performance, durability and effectiveness. Our apparatus is hence widely applauded and demanded in both domestic as well as overseas markets.Objective:- Forward & Reverse Characteristics of PN Junction Diode.
Technical Specifications:Inbuilt Variable DC Regulated Power Supplies Output voltages 0-3VDC, 0-30VDC On Board Analog Moving Coil Meters (60 mm x 35 mm ) Voltmeter 0-3V /0-30V DC (Dual range) Ammeter 0-100uA/0-10mA DC (Dual range) Switches & Diodes provided. SPDT 2 Nos. DPDT 1 No. PN Junction OA-79 (2 Nos.) Power requirement 230 VAC 10%, 50Hz. Weight 1.5 Kg Approx Dimensions (mm) 300( L) x 175(B) x 75(H) High quality Aluminum used as front panel of 270mm x 170mm & mounted on light weight shock proof plastic cabinet. Symbol diagram printed on Aluminum Front Panel & all important test Points are brought out on front panel.
Standard Accessories:Power chord, Patch chords & Instruction manual.Ordering Details:Catalogue No. Description LEC-3030 PN Junction Diode Characteristics Apparatus - Additional Information
-
Additional Information
Code No - Reviews
-
