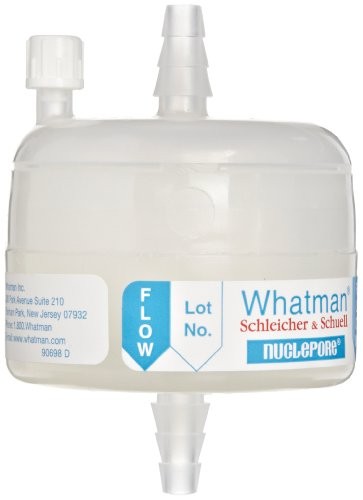

Polycap AS Filter

• First layer (GMF) acts as a prefilter to ensure longer membrane (0.2, 0.45, and 1.0 µm) life and higher filtration efficiency.
• Nylon membrane layer is inherently hydrophilic, has low extractables, is biosafe, and has excellent flow rates.
• Housing thermally fused (no glues, adhesives, or extraneous materials).
• Integrity-testable by bubble point, pressure decay, or forward flow methods.
• Provides highly effective filtration area in a small size.
• Autoclavable; some presterilized with gamma irradiation.
• Manufactured in clean room facilities under ISO Quality Systems.

Polycap AS (Aqueous Solution) is a product recommended for filtering aqueous solutions. It combines a glass microfiber (GMF) prefilter and a nylon membrane, prolonging the life of the filter and allowing larger volumes and difficult samples to be filtered easily.

Specifications:

• Inlet Connector: Female national pipe thread (FNPT)
• Outlet Connector: Female national pipe thread (FNPT)
• Housing: Polypropylene (PP)
• Operating Pressure Max.: 4.1 bar (60 psi)
• Vent: On inlet
• Prefilter: Glass microfiber double laminated with polyolefin monofilament non-woven
• Endotoxin Level: LAL tested, ≤0.5 EU/ml
• Sealing: Heat-fused
• Support System: Polypropylene (PP)
