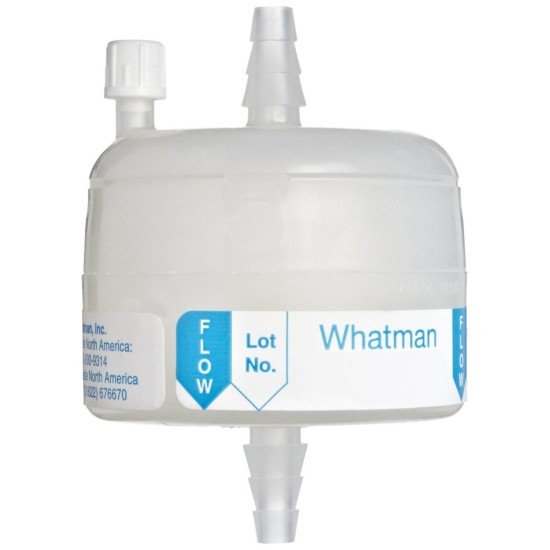

Polycap HD Filter

Polycap HD (Heavy Duty) offers high filtration efficiency and excellent filtrate purity due to its materials and methods of manufacture.

• 100% polypropylene filter media, support system and housing allows usage with broad range of solutions, pH, and temperature.
• High flow and high retention capacity.
• Able to be sterilized by autoclaving with steam at 121°C for 20 min.
• Manual vent with luer lock to bleed air from upstream or serve as an injection or sample port.
• Available in 0.45, 1.0, 5.0, 10, or 20 µm Absolute retention rating and a variety of end-fitting configurations.

Polycap HD (Heavy Duty) is a well-engineered product that offers high filtration efficiency and excellent filtrate purity due to its materials and methods of manufacture.

Polycap HD provides an advantage in process applications as its performance characteristics fit between gross filters and microporous membrane filters used for final filtration.

Specifications:

• Housing: Polypropylene (PP)
• Operating Pressure Max.: 4.1 bar (60 psi)
• Biosafety: Materials pass USP Class VI
• Vent: On inlet
• Filter Media: Polypropylene (PP)
• Sterilization: Capsules autoclavable at 121°C for 20 minutes.
• Support System: Polypropylene (PP)
