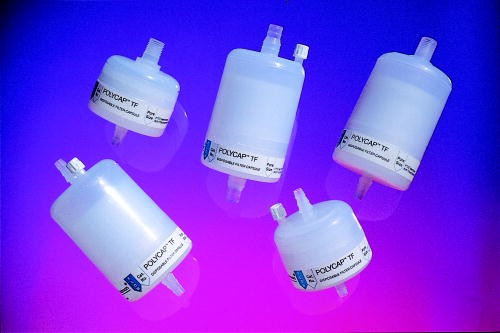

Polycap TF Filter

Polycap TF made with durable, hydrophobic polytetrafluoroethylene (PTFE) membranes in a polypropylene housing, are designed for use with organic solvents and chemically aggressive solutions.

• Resistant to most solvents, autoclavable, and integrity-testable.
• Available in 0.05, 0.1, 0.2, 0.45, and 1.0 µm pore sizes.
• 0.05 µm capsules designed for ultra-clean applications; 1.0 µm used for extended life and filtration of highly contaminated solutions.
• Able to be sterilized by autoclaving with steam or EtO.
• Manufactured under very clean conditions in a Class 10 000 clean room and under ISO Quality Systems.

Polycap TF filter devices are among the finest disposable encapsulated filters. These capsules are made with durable, hydrophobic polytetrafluoroethylene (PTFE) membranes in a polypropylene housing and are designed for use with organic solvents and chemically aggressive solutions.

Specifications:

• Housing: Polypropylene (PP)
• Operating Pressure Max.: 4.1 bar (60 psi)
• Vent: On inlet
• Flow Direction: Supported bidirectional. Certain applications may require orientation, i.e., vents. Reverse flow only for low pressure applications.
• Sterilization: May be autoclaved at 121°C for 20 minutes. Multiple autoclave cycles are possible. However, the responsibility for reuse is with the operator. The device should be protected from cross contamination. An integrity test should be performed after autoclaving. Compatible with EtO sterilization.
• Sealing: Heat-fused
• Support System: Polypropylene (PP)

Ordering Information:
