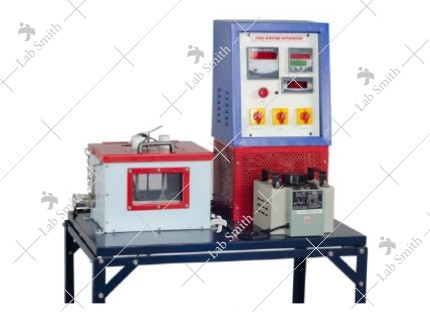

DESCRIPTION:The present setup is designed to study the critical heat flux of a given nichrome wire. The setup consists of temperature controlled water bath with controller. Temperature of the waterbath can be varied from ambient to 80°C to achieve different environment for nichrome wire. Test heater wire is placed in the bath & voltage is varied by variac provided. The system is complete with digital temperature controller, voltmeter, and ammeter & voltage control facility.
EXPERIMENTATION:- To determine the critical heat flux of given wire
- To study the pool boiling phenomenon upto Critical Heat flux point
UTILITIES REQUIRED:- Electricity Supply: 1 Phase, 220 V AC, 5 Amp.
- Water supply: Initial fill
- Floor Drain
- Floor area: 1.0m x 0.75 m
- Nichrome wire : 40 swg
TECHNICAL DETAILS :Boiling chamber Rectangular chamber (Material SS) with transparent window for observation of test heater Test heater With holding arrangement for quick change of wire Control panel comprising of Digital Temp. Controller 0-199.9 °C, for water bath Voltmeter 0-200 V Ammeter 0-2 Amp (with Peak Hold Facility) Dimmerstat 0-4 A, 230 V With standard make on/off switch, Mains Indicator etc. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:Catalogue No Description JIHT-021 POOL BOILING APPARATUS - Additional Information
-
Additional Information
Code No - Reviews
-
