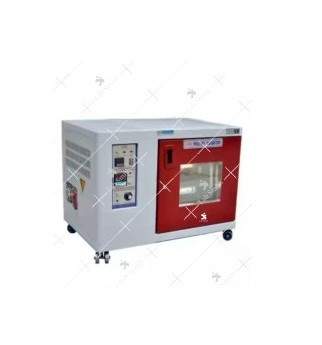

Poultry Incubator -234

Applications

• Outer wall is made up M.S. sheet duly painted and inside of stainless steel.
• The gap between inner and outer wall is fitted with high grade mineral glass wool.
• Temperature range from ambient to 70^OC
• Temperature is controlled by microprocessor based PID Digital Temperature Indicator-cum-controller with an accuracy of +0.5^OC
• The unit is fitted with a geared motor and an automatic timer for automatic tilting of the trays loaded with eggs.
• To work on 220/230 volts A.C. Supply.

Technical Specifications

• MOC (Outer): M.S. Sheet duly powder coated
• MOC (Inner): Stainless Steel Sheet (SS-304)
• Insulation: High Grade Mineral Glass Wool
• Humidity Creation: Controlled through sophisticated steam injection process.
• Humidity Range: 5% above ambient from 40% to 95% RH at cool temperatures.
• Humidity Control: Microprocessor Based Digital Humidity Indicator-Cum-Controller.
• Humidity Accuracy: +3% RH
• Temperature Range: Ambient +5⁰C to 70⁰C.
• Temperature Controller: Microprocessor Based PID Digital Temperature Indicator-cum-Controller
• Display Digital LED Display with Set Value (SV) & Process Value (PV)
• Temp. Accuracy: +1⁰C
• Tilting Device: The unit is fitted with a geared motor and an automatic timer for automatic tilting of the trays loaded with eggs.
• Power Supply: 220/230 Volts. AC supply
