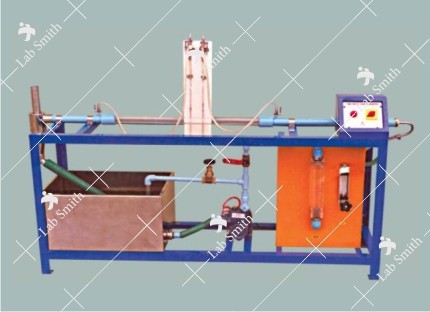

DESCRIPTION:The Apparatus is designed to study the pressure drop in two-phase flow under different patterns. The set-up consists of a test section, made of Borosilicate Glass to visualize the different patterns. A Centrifugal Pump, with flow control valve and by-pass valve, is provided to supply water to the pipe line. At outlet, a Separator is provided to separate the air from water. Two Rotameters one each for Air and Water are provided to measure the flow rates.
EXPERIMENTATION:- To determine the pressure drop in two phase flow.
- To visualize the flow pattern.
UTILITIES REQUIRED:- Compressed Air Supply at 2 Bar, 2.5 CFM.
- Electricity 1.5 kW, 220 V, Single Phase.
- Water Supply.
- Floor Drain.
- Floor Area 1.5 x 0.75 m.
TECHNICAL DETAILS:Test Section Material Borosilicate GlassDia : 1”, Length 900mm Approx Water Circulation FHP Pump, Crompton/Sharp make. Flow Measurement Rotameters. 2 Nos. (one each for Water & Air). Air Circulation By Compressed Air. Buffer Tank Material Stainless steel, Suitable CapacityWith Safety valve and Pressure Gauge. Water Tank Material Stainless Steel/PVC, Capacity 60 Ltrs. Pr. Dropmeasurement By Differential Manometer Separator Material Stainless steel, Compatible capacity. Piping GI and PVC Control panel comprises of Standard make on off switch,Mains Indicator etc. An ENGLISH instruction manual will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
