DESCRIPTION:

The set-up consists of a glass column packed with packing material i.e. Rasching rings, SS mesh to support the packing and with calming section. Pressure drop across packed bed can be measured by a manometer. The apparatus is close circuit type provided with tank, Pump, necessary piping, valves and Rotameter to measure the flow rate of fluid. The set-up is fitted on a MS frame and painted with good quality corrosion resistant paint.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “LAB Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To study relationship between velocity of fluid and pressure drop per unit packed length.

UTILITIES REQUIRED:

• Electricity: 1 Phase, 220 V, 50 Hz AC
• Floor Area: 0.75 m x 0.75 m.
• Mercury: 250 ml.
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:

JMMT-501

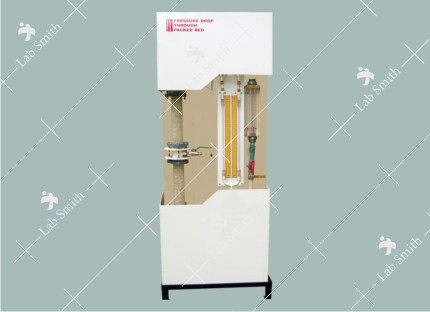

PRESSURE DROP THROUGH PACKED BED

(With Data Logging Facility)
