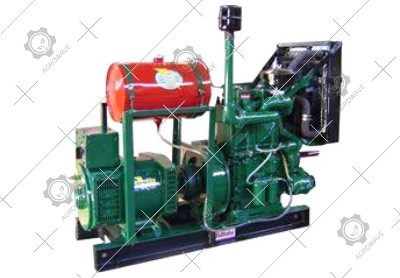

Diesel Generators Single Phase

Diesel Generators Single Phase

More Views

Diesel Generators Single Phase

Code:
Diesel Generators (Single Phase)
ENGINE
Cooling Water /Air
No. of Cyl. One / Two
Fuel H.S. Diesel
Speed 1500 RPM
SFC 1 gms/HP-Hr

A. C. GENERATOR
Voltage 230/415 V
Phase Single/Three
Frequency 50 Hz
Regulation ± 5 % Max.
Insulation F Class
Mounting Foot

MODELSINGLE PHASE  KVA  KW240 Volts BHP50 Hz  RPM  No. Of Piston Cooling Packing Size (cm) Nett. Wt. Kg. Gross Wt. Kg.
MINI 2 2 4.5 1500 SINGLE Water/Air 90x50x100 125 170
V-2 4 4 6.5 1500 SINGLE Water/Air 112x65x130 325 475
V-3 5 5 8 1500 SINGLE Water/Air 112x65x130 330 485
V-4 6 6 10 1500 SINGLE Water/Air 112x65x130 360 510
V-5 7 7 11 1500 SINGLE Water/Air 112x65x135 370 520
V-6 8 8 14 1500 SINGLE Water 112x65x135 390 540
V-7 10 10 15 1500 DOUBLE Water/Air 120x70x160 445 64
V-8 12 12 20 1500 DOUBLE Water/Air 120x70x160 450 645
V-9 14 14 22 1500 DOUBLE Water/Air 120x70x160 460 655
V-10 16 16 18 1500 DOUBLE Water 125x85x165 470 665
V-10H 18 18 30 1500 DOUBLE Water 125x85x165 490 690

SPECIFICATIONS

GOVERNING
A sensible mechanical centrifugal type governor mounted on the camshaft gear. Speed variation is controlled within limits to comply with class B1 governing as per IS:10001 (GENERAL PURPOSE).

COOLING
Engine is continuously cooled by flow of water. Either by Radiator mounted on engine or direct water supply. Front radiator mounted engines also available.

STARTING
The engine is designed for starting by hand. Electric Start Provision can also be provided against specific requirement. Dynamo battery chargers also available.

POLLUTION CONTROL DEVICE
Single Element Catalytic Converter for control of NOx, CO, THC & HAPs.

SOUND & VIBRATION CONTROL DEVICE
We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.

ENGINE SAFTY DEVICE (OPTIONAL)
Engine controller with Manual Start/ Stop, Automatic shut down for fault, Keyswitch operation, 16A contacts for start/stop, Electronic warning lamp.

ENGINE SAFTY DEVICE CONTROLLER (OPTIONAL)
Display of Battery Voltage, Oil Pressure, Temperature, Engine RPM & Running Hrs. , 14 Programmable parameters, Electronic alternator excitation circuit, 5 Digital & 4 Analog inputs, 3 relay outputs for start, Stop and one is programmable, Engine run hours counter, Automatic & manual operation mode, Remote Start & stop function. Sound Proofing canopy can also supplied.


DIESEL WATER COOLED GENSET
ENGINE
Cooling Water Cooled
Fuel H.S. Diesel
Speed 1500 RPM
Type Vertical ,4-stroke,compression ignition
Injection Direct by multi-hole nozzel
RPM 1500-1800
Starting Electrical (12 Volts)
Governor Mechanical

A. C. GENERATOR
Voltage 230/415 V
Phase Single/Three
Frequency 50 Hz
Insulation F Class
Power Factor 0.8



AC GENERATORS		       DIESEL ENGINE
MODEL RATED OUTPUT CURRENT (AMPS) RATED POWER (HP) NO. OF CYLIN- DERS SWEPT VOLUME (CC)

SPECIFIC FUEL

CONSUMPTION (GM/ BHP-HR)

 ASPIRA- TION
KVA KW THREE PHASE SINGLE PHASE
VMG-25 25 20 35 105 32 2 2376 162 Natural
VMG-30 30 24 42 126 41 3 3307 162 Natural
VMG-35 35 28 49 147 46* 3 3307 162 Natural
VMG-40 40 32 56 168 56 4 4561 159 Natural
VMG-45 45 36 63 189 56 4 4561 159 Natural
VMG-50 50 40 70 210 62* 4 4561 169 Natural
VMG-65 65 52 90 NA 84 4 4561 162 Turbo Charged
VMG-82 82.5 66 114 NA 106 6 6614 152 Turbo Charged
VMG-100 100 80 138 NA 125 6 6614 152 Turbo Charged

Description

Details

Diesel Generators (Single Phase)
ENGINE
Cooling Water /Air
No. of Cyl. One / Two
Fuel H.S. Diesel
Speed 1500 RPM
SFC 1 gms/HP-Hr

A. C. GENERATOR
Voltage 230/415 V
Phase Single/Three
Frequency 50 Hz
Regulation ± 5 % Max.
Insulation F Class
Mounting Foot

MODELSINGLE PHASE  KVA  KW240 Volts BHP50 Hz  RPM  No. Of Piston Cooling Packing Size (cm) Nett. Wt. Kg. Gross Wt. Kg.
MINI 2 2 4.5 1500 SINGLE Water/Air 90x50x100 125 170
V-2 4 4 6.5 1500 SINGLE Water/Air 112x65x130 325 475
V-3 5 5 8 1500 SINGLE Water/Air 112x65x130 330 485
V-4 6 6 10 1500 SINGLE Water/Air 112x65x130 360 510
V-5 7 7 11 1500 SINGLE Water/Air 112x65x135 370 520
V-6 8 8 14 1500 SINGLE Water 112x65x135 390 540
V-7 10 10 15 1500 DOUBLE Water/Air 120x70x160 445 64
V-8 12 12 20 1500 DOUBLE Water/Air 120x70x160 450 645
V-9 14 14 22 1500 DOUBLE Water/Air 120x70x160 460 655
V-10 16 16 18 1500 DOUBLE Water 125x85x165 470 665
V-10H 18 18 30 1500 DOUBLE Water 125x85x165 490 690

SPECIFICATIONS

GOVERNING
A sensible mechanical centrifugal type governor mounted on the camshaft gear. Speed variation is controlled within limits to comply with class B1 governing as per IS:10001 (GENERAL PURPOSE).

COOLING
Engine is continuously cooled by flow of water. Either by Radiator mounted on engine or direct water supply. Front radiator mounted engines also available.

STARTING
The engine is designed for starting by hand. Electric Start Provision can also be provided against specific requirement. Dynamo battery chargers also available.

POLLUTION CONTROL DEVICE
Single Element Catalytic Converter for control of NOx, CO, THC & HAPs.

SOUND & VIBRATION CONTROL DEVICE
We offer Canopy, Industrial type Air cleaner & Silencer, Round Duct Expansion Joints, Anti Vibration Mounts etc.

ENGINE SAFTY DEVICE (OPTIONAL)
Engine controller with Manual Start/ Stop, Automatic shut down for fault, Keyswitch operation, 16A contacts for start/stop, Electronic warning lamp.

ENGINE SAFTY DEVICE CONTROLLER (OPTIONAL)
Display of Battery Voltage, Oil Pressure, Temperature, Engine RPM & Running Hrs. , 14 Programmable parameters, Electronic alternator excitation circuit, 5 Digital & 4 Analog inputs, 3 relay outputs for start, Stop and one is programmable, Engine run hours counter, Automatic & manual operation mode, Remote Start & stop function. Sound Proofing canopy can also supplied.


DIESEL WATER COOLED GENSET
ENGINE
Cooling Water Cooled
Fuel H.S. Diesel
Speed 1500 RPM
Type Vertical ,4-stroke,compression ignition
Injection Direct by multi-hole nozzel
RPM 1500-1800
Starting Electrical (12 Volts)
Governor Mechanical

A. C. GENERATOR
Voltage 230/415 V
Phase Single/Three
Frequency 50 Hz
Insulation F Class
Power Factor 0.8



AC GENERATORS		       DIESEL ENGINE
MODEL RATED OUTPUT CURRENT (AMPS) RATED POWER (HP) NO. OF CYLIN- DERS SWEPT VOLUME (CC)

SPECIFIC FUEL

CONSUMPTION (GM/ BHP-HR)

 ASPIRA- TION
KVA KW THREE PHASE SINGLE PHASE
VMG-25 25 20 35 105 32 2 2376 162 Natural
VMG-30 30 24 42 126 41 3 3307 162 Natural
VMG-35 35 28 49 147 46* 3 3307 162 Natural
VMG-40 40 32 56 168 56 4 4561 159 Natural
VMG-45 45 36 63 189 56 4 4561 159 Natural
VMG-50 50 40 70 210 62* 4 4561 169 Natural
VMG-65 65 52 90 NA 84 4 4561 162 Turbo Charged
VMG-82 82.5 66 114 NA 106 6 6614 152 Turbo Charged
VMG-100 100 80 138 NA 125 6 6614 152 Turbo Charged
