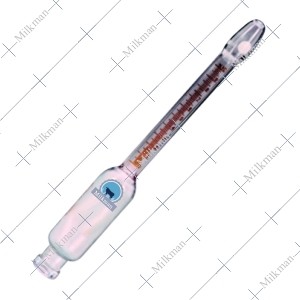

Milk Butyrometer Corning Glass 0-10% Flat Scale ISI Marked

More Views

Code:

Milk Butyrometer Corning Glass 0-10% Flat Scale ISI Marked,

Milk Butyrometer Corning Glass 0-10% Original Lmmco Flat Scale ISI marked Silver Screen/Red Acid Proof Permanent Marking, Export Grade Best Quality.

Features :

The Milk Butyrometers we produce are ISI marked.

They are available for milk & milk products.

Butyrometers are also available with officially calibration with certification.

Made by highly qualified & skilled personals.

The marking on Butyrometer is silver screen permanent marking.

Specification:-

Catalogue No	JM64
Material	Borosilicate (Type-I) Heat resistant glass with co-efficient of linear thermal expansion of 33x10 / C
Overall Length	190 _{+_}5
Length of the Neck	14.5 _{+_}0.5
Internal Diameter of Neck	11.0_{+_} 0.5
External Diameter of Body	25 mm (max)
External Diameter of Bulb	15 mm (max
Wall Thickness of Graduated Portion	1.2 mm (min)
Wall Thickness of Body	1.0 mm (min)
Capacity of Body	20.5_{+_} 0.5
Neck	Plain
Scale	Flat, minimum length 70 mm
Quantity of Milk to be Used	10.75 ml
Tolerance	0.05% (max)
Graduation	a)0-10% in 1/10% b)0-8% in 1/8% c)0-6% in 1/6%

Description

Milk Butyrometer Corning Glass 0-10% Flat Scale ISI Marked,

Milk Butyrometer Corning Glass 0-10% Original Lmmco Flat Scale ISI marked Silver Screen/Red Acid Proof Permanent Marking, Export Grade Best Quality.

Features :

The Milk Butyrometers we produce are ISI marked.

They are available for milk & milk products.

Butyrometers are also available with officially calibration with certification.

Made by highly qualified & skilled personals.

The marking on Butyrometer is silver screen permanent marking.

Specification:-

Catalogue No	JM64
Material	Borosilicate (Type-I) Heat resistant glass with co-efficient of linear thermal expansion of 33x10 / C
Overall Length	190 _{+_}5
Length of the Neck	14.5 _{+_}0.5
Internal Diameter of Neck	11.0_{+_} 0.5
External Diameter of Body	25 mm (max)
External Diameter of Bulb	15 mm (max
Wall Thickness of Graduated Portion	1.2 mm (min)
Wall Thickness of Body	1.0 mm (min)
Capacity of Body	20.5_{+_} 0.5
Neck	Plain
Scale	Flat, minimum length 70 mm
Quantity of Milk to be Used	10.75 ml
Tolerance	0.05% (max)
Graduation	a)0-10% in 1/10% b)0-8% in 1/8% c)0-6% in 1/6%
