opus® titration

opus® titration

More Views

opus® titration

Code:

opus® titration

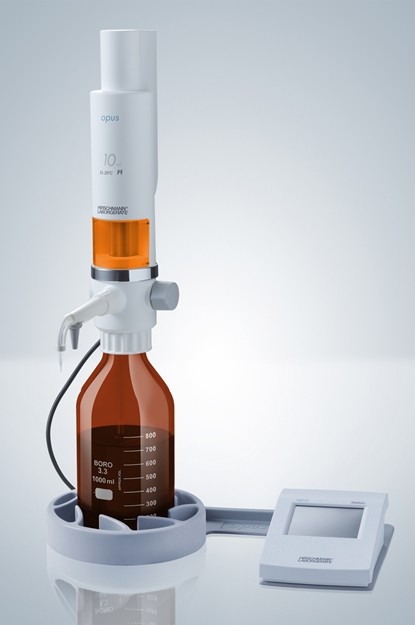

A titration unit with a reagent recirculation system for motor-powered titration directly from the reagent bottle. Available in three volumes (10 ml, 20 ml and 50 ml).

Drop by drop towards precise analysis results - combines accuracy with time-saving and user-friendliness. Electronic control of titration enables the achievement of reproducible results and precisely defined dynamics each time. Time-saving rapid titration with subsequent fine titration enhances accuracy and efficiency. The titration impulse triggered by the motor enables the achievement of a droplet break-up with output volumes from 10 µl to 99.999 ml and delivers resolutions up to the third decimal place. The titration procedure is configured on the intuitive TFT touchscreen. The user is guided through menu functions which are easily legible and comprehensible. Nine different titration procedures with their complete settings can be saved in the method memory and reactivated at any time if required.

Overview of details

  • Electronic control and dispensing of volumes
  • A light protection window for the valve block is also included in the scope of delivery
  • Titration impulse triggered by the motor enables the achievement of a droplet break u p from 10 µl for precision determination
  • Media recirculating system for simple and rapid venting without reagent loss
  • Free rotation
  • TFT touchscreen with user-friendly menu
  • Method memory for nine different titration procedures with storage o f all settings
  • USB and RS232 interface for PC connection
  • Integration in automated procedures possible

opus® titration HiClass in motor-powered titration

Performance data Basic unit 10 ml 20 ml 50 ml
Unit Type Microprocessor-controlled, motorised piston lift system with recirculation
Volume range 0.01 ml - 10.00 ml and 0.010 ml - 10.000 ml max.piston lift 10 ml, automatic addition up to 99.99/99.999 ml, resolution: 1 µl 0.1 ml - 20 ml max. piston lift 20 ml, automatic addition up to 99.99 ml, resolution: 10 µl 1.00 ml - 50 ml max. piston lift 50 ml, automatic addition up to 99.99 ml, resolution: 10 µl
Volume accuracy R = 0.2%, CV = 0.07% R = 0.2%, CV = 0.07% R = 0.2%, CV = 0.05%
Velocity in 16 stages from 0.01 ml/s to 2 ml/s independently adjustable for suctioning and dispensing speed in 10 stages from 0.1 ml/s to 4 ml/s independently adjustable for suctioning and dispensing speed in 10 stages from 1 ml/s to 10 ml/s independently adjustable for suctioning and dispensing speed
Operating temperature range +4 °C to +40 °C
Power Supply Plug-in mains unit 15V, 850 mA (optional via battery in control unit)
Optional battery operation Battery charge for an average of 2.5 to 3 h continuous operation. Battery capacity indicated on TFT display, charging time 6.5 h, intelligent electronics prevent overloading and deep discharging
Materials Housing made of PA6 reinforced glass fibre, all parts in contact with liquid are made of chemically inert material
Cleaning, sterilization Motorised rinsing function, can be disconnected without tools, media-conveying components are suitable for steam sterilisation (121 °C)
Aeration Automatic at the push of a button
Dimensions/ Weight 320 mm x 80 mm x 63 mm (H x D x W)/ 660 g
Quality control in compliance with DIN EN ISO 8655
Documentation DIN EN ISO 9001 compliant certification through unit protocol with serial number



Performance data Control Unit 10 ml 20 ml 50 ml
Module type External control module incl. touch screen control
Touchscreen 3.5“ with 320 X 240 pixel, most important functions directly accessible from main screen
Individual dispensing Up to 10 ml Up to 20 ml Up to 50 ml
Rapid titration For rapid medium dispensing at beginning of titration process
Droplet titration With 1 droplet per button push, accelerating if button is pressed
Quick-Cal Calibration of other temperature or medium possible
Method memory Up to 9 different unit configurations can be saved
Languages 4 languages (D, GB, F, S) integrated as standard option
PC interface USB or RS232
Remote control Unit can be remotely controlled via an additional cable-connected device
Dimensions/ Weight: 55 mm x 130 mm x 110 mm (H x D x W)/230 g (without battery)

Scope of delivery

  • opus® with A 45 internal thread and additional A 32, A 38 and S 40 threaded adapters
  • Suction hose with union nut, recirculation hose, dispenser ejection unit, valve fitting wrench, touchscreen control unit "titration", brown light protection window, power supply unit, data power cable, operating manual and individual quality certificate

Ordering Information:

Catalogue No. Description
958 20 10 opus® titration 10 ml, power supply unit with 100, EU, US, UK plug
958 20 20 opus® titration 20 ml, power supply unit with 100, EU, US, UK plug
958 20 50 opus® titration 50 ml, power supply unit with 100, EU, US, UK plug
