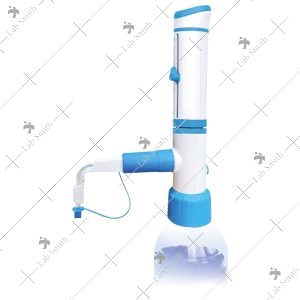

Scitus Bottle Top Dispenser

More Views

Code:

Scitus Bottle Top Dispenser

Contemporary Design & High Performance

Features:

Six Unique Volume Ranges: 0.25 - 2.5 ml, 0.5 - 5 ml, 1 - 10 ml, 2.5 - 30 ml, 5 - 60 ml, 10 - 100 ml
Smooth, effortless plunger movement and bubble free dispensing.
Easy volume setting by rotation of volume adjustment knob by 180°.
Easy to dis-assemble for cleaning and servicing.
Instrument is fully autoclavable at 20° C, 15psi. for 10 - 15 mins.
Five adaptors are provided to fit most of the laboratory reagent bottles in the following sizes: 28, 32, 36, 40 & 45mm.
The threaded platform base of the Dispenser has 30mm thread.
Adjustable Delivery Nozzle facilitate dispensing ease in all demanding laboratory conditions.
Specially designed adapter allow 360° rotation, providing full flexibility in working.
PTFE Piston with ETP O-Ring Ensures Very High Chemical Compatibility & Wiper Like Smooth, Effortless Piston Movement.
Specially designed, spring-less, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.

Component Description:

Component	Description
Piston	PTFE & ETP
Cylinder	Borosilicate Glass
Volume Adjustment Knob	PP. 180° Rotation
Valve Housing	PFA
Re-Circulation Valve Housing	PFA
Valve Assembly	Borosilicate Glass Ball & Seat
Discharge Assembly	PTFE
Delivery Tube	FEP
Inlet Tube	FEP
Calibration	Individually calibrated and certified. In-lab easy calibration by the user is also possible.
Accuracy & Reproducibility	In accordance with ISO 8655 standards
Compatibility	Excellent compatibility with all reagents except HF

Ordering Information with Technical Specifications:

Catalogue No.	Vol. Range	Increment	Accuracy		CV
Catalogue No.	Vol. Range	Increment	±%	± ml	±%	± ml
SCI-2.5	0.25-2.5 ml	0.05 ml	0.6	0.015	0.2	0.005
SCI-5	0.5-5 ml	0.1 ml	0.6	0.030	0.2	0.010
SCI-10	1-10 ml	0.2 ml	0.6	0.060	0.2	0.020
SCI-30	2.5-30 ml	0.5 ml	0.6	0.180	0.2	0.060
SCI-60	5-60 ml	1.0 ml	0.6	0.360	0.2	0.120
SCI-100	10-100 ml	2.0 ml	0.6	0.600	0.2	0.200

Description

Scitus Bottle Top Dispenser

Contemporary Design & High Performance

Features:

Six Unique Volume Ranges: 0.25 - 2.5 ml, 0.5 - 5 ml, 1 - 10 ml, 2.5 - 30 ml, 5 - 60 ml, 10 - 100 ml
Smooth, effortless plunger movement and bubble free dispensing.
Easy volume setting by rotation of volume adjustment knob by 180°.
Easy to dis-assemble for cleaning and servicing.
Instrument is fully autoclavable at 20° C, 15psi. for 10 - 15 mins.
Five adaptors are provided to fit most of the laboratory reagent bottles in the following sizes: 28, 32, 36, 40 & 45mm.
The threaded platform base of the Dispenser has 30mm thread.
Adjustable Delivery Nozzle facilitate dispensing ease in all demanding laboratory conditions.
Specially designed adapter allow 360° rotation, providing full flexibility in working.
PTFE Piston with ETP O-Ring Ensures Very High Chemical Compatibility & Wiper Like Smooth, Effortless Piston Movement.
Specially designed, spring-less, PTFE valve manifold ensures high chemical compatibility and jamming free valve functioning.

Component Description:

Component	Description
Piston	PTFE & ETP
Cylinder	Borosilicate Glass
Volume Adjustment Knob	PP. 180° Rotation
Valve Housing	PFA
Re-Circulation Valve Housing	PFA
Valve Assembly	Borosilicate Glass Ball & Seat
Discharge Assembly	PTFE
Delivery Tube	FEP
Inlet Tube	FEP
Calibration	Individually calibrated and certified. In-lab easy calibration by the user is also possible.
Accuracy & Reproducibility	In accordance with ISO 8655 standards
Compatibility	Excellent compatibility with all reagents except HF

Ordering Information with Technical Specifications:

Catalogue No.	Vol. Range	Increment	Accuracy		CV
Catalogue No.	Vol. Range	Increment	±%	± ml	±%	± ml
SCI-2.5	0.25-2.5 ml	0.05 ml	0.6	0.015	0.2	0.005
SCI-5	0.5-5 ml	0.1 ml	0.6	0.030	0.2	0.010
SCI-10	1-10 ml	0.2 ml	0.6	0.060	0.2	0.020
SCI-30	2.5-30 ml	0.5 ml	0.6	0.180	0.2	0.060
SCI-60	5-60 ml	1.0 ml	0.6	0.360	0.2	0.120
SCI-100	10-100 ml	2.0 ml	0.6	0.600	0.2	0.200
