Details

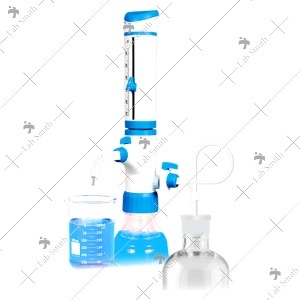

Ultimus Bottle Top Dispenser
With Dual Inlet Technology
Six Unique Volume Ranges: 0.25 - 2.5 ml, 0.5 - 5 ml, 1 - 10 ml, 2.5 - 30 ml, 5 - 60 ml, 10 - 100 ml
Fully Autoclavable at 121°C, 15psi. for 10 - 15 mins.
Ultimus offers four modes of operation:
Standard Dispensing
Valve 1 - Open
Valve 2 - Closed
In this mode the Dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
Purging
Valve 1 - Closed
Valve 2 - Closed
In this mode the liquid is re-circulated into the same bottle on which the dispenser in mounted. This process removes the air from the dispenser without wasting any reagent.
Dilution / Rinsing / Second Liquid Dispensing
Valve 1 - Open
Valve 2 - Open
In this mode the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting from the bottle of for dilution of the reagent in the receiver.
Bottle Refilling
Valve 1 - Closed
Valve 2 - Open
In this mode the liquid from a second source can be used to refill the bottle without dismounting the dispenser.
Features
- Adjustable Delivery Nozzle: Adjustable Delivery Nozzle to facilitate dispensing ease in all demanding laboratory conditions.
- Specially Designed Volume Adjustment Knob: 180° rotation for easy and effortless volume setting.
- 360° Rotation: Specially designed adapter allows 360° rotation, providing full flexibility in working.
- Unique Piston: PTFE Piston with ETP O-Ring ensures very high chemical compatibility & wiper like smooth, effortless piston movement.
- Adaptors: Adaptors to fit most of the laboratory reagent bottles are provided in the following sizes : 28, 30, 32, 36, 40 & 45mm.
- Coiled Extension Tube for Refilling
- Calibration: Specially designed calibration tool is provided for convenient and quick in-lab user re-calibration. This is in compliance with GLO/ISO norms.
- Reservoir Covers: There is an additional set of reservoir covers for the second bottle. Available sizes: 28, 32, 36, 40 & 45 mm.
Component Description:
Component Description Piston PTFE & ETP Cylinder Borosilicate Glass Volume Adjustment Knob PP. 180° Rotation Valve Housing PFA Re-Circulation Valve Housing PFA Valve Assembly Borosilicate Glass Ball & Seat Discharge Assembly PTFE Delivery Tube FEP Inlet Tube FEP Calibration Individually calibrated and certified. In-lab easy calibration by the user is also possible. Accuracy & Reproducibility In accordance with ISO 8655 standards Compatibility Excellent compatibility with all reagents except HF Ordering Information with Technical Specifications:
Catalogue No. Vol. Range Increment Accuracy CV ±% ± ml ±% ± ml ULT-2.5 0.25-2.5 ml 0.05 ml 0.6 0.015 0.2 0.005 ULT-5 0.5-5 ml 0.1 ml 0.6 0.030 0.2 0.010 ULT-10 1-10 ml 0.2 ml 0.6 0.060 0.2 0.020 ULT-30 2.5-30 ml 0.5 ml 0.6 0.180 0.2 0.060 ULT-60 5-60 ml 1.0 ml 0.6 0.360 0.2 0.120 ULT-100 10-100 ml 2.0 ml 0.6 0.600 0.2 0.200 - Additional Information
-
