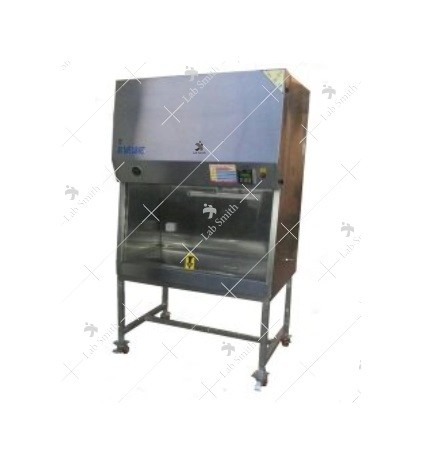

Biosafe Cabinet (Stainless Steel) Class II, A-2

Technical Specifications:

• Switches : Switches for Blower, Fluorescent light & UV light.
• Pre-filter : 99.00% down to 5 micron.
• HEPA Filter : ISO 14644 Class 5 (Class 100) 99.97%-99.99% down to 0.3 micron. Mesh guard for protection of HEPA Filter.
• Airflow : Vertical, 70% of the air volume is re-circulated, 30% is exhausted.
• Noise Level : 60 decibel ± 5%.
• Velocity : 0.35-0.50m/sec.
• Work Table : Made up of Perforated Stainless Steel 304gr.Cock for gas on work table.
• Front door : Made of acrylic duly counter balanced.
• UV Lamp : 15/30W, make Philips Holland.
• Illuminatio : 20/40W, Fluorescent tube with diffuser.
• Pressure : Manometer 0-50mm range.
• Power Supply : 230V ± 10V/50Hz single phase A.C.
• Cabinet : Made of 304gr. Stainless Steel.
• Heavy Duty Blower : Dynamically balanced with 0.25 HP Electric Motor Mounted on anti vibration pad1440rpm motor.
• Virus Burn Out : Fitted with exhaust and HEPA Filter for environment protection.
• Stand : Fitted with Castor Wheels for easy movability. Front Wheels lockable with brakes.

Ordering Information
