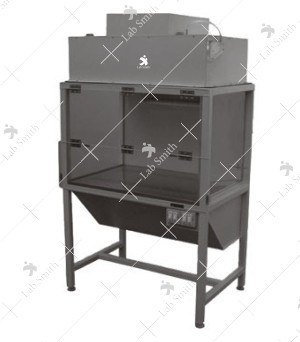

Laminar Air Flow (Vertical) Complete Stainless Steel

Technical Specifications:

• Switches : Microprocessor based switches for blower, Fluorescent light & UV light with LCD back light display.(UV light with Timer).
• Pre-filter : 99.00% down to 5 micron.
• HEPA Filter : ISO 14644 Class 5 (Class 100) 99.97%-99.99% down to 0.3 micron.Mesh guard for protection of HEPA Filter.
• Airflow : Top to downward
• Noise Level : 60 decibel ± 5%.
• Velocity : 0.35-0.50m/sec.
• Work Table : Made up of Perforated Stainless Steel 304gr. Cock for gas on work table.
• Front door : Made of acrylic.
• UV Lamp : 15/30W, make Philips Holland.
• Illumination : 20/40W, Fluorescent tube with diffuser.
• Pressure : Manometer 0-50mm range.
• Power Supply : 230V ± 10V/50Hz single phase A.C.
• Cabinet : Cabinet made of 304gr.Stainless Steel.
• Heavy Duty Blower : Dynamically balanced with 0.25 HP Electric Motor Mounted on anti vibration pad 1440rpm motor.
