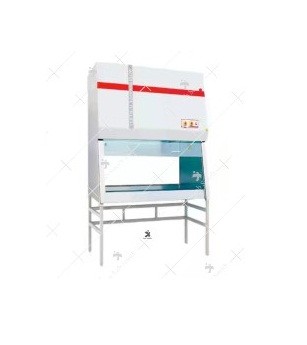

Vertical Laminar Air Flow Duo -162 DUO

Application & Key Feature

• Vertical DUO Laminar for working across the table, dual operation.
• It is used for various works that require maintenance of the cleanliness and purity like plant tissue culture, examination and experimentation of precision electronics parts, medical sciences, pharmacy, agriculture sector and the like.
• Designed so as to meet the requirements of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions.
• Cabinet is fabricated of Cold Rolled Steel Duly (powder coated)/ PCGI and Stainless Steel (S.S.304)
• Working table is made of Stainless Steel Sheet (SS-304 grade).
• Side panels and front doors are made out of thick transparent plexi glass.
• Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
• Heavy Duty Motor operates with minimum noise level.
• Using a dynamic machine, the blower and motor assembly is statically & dynamically balanced.
• Working area is illuminated by fluorescent lighting fitted to the unit.
• Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer, Built in U.V. Germicidal light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
• The highly efficient HEPA filter maintains the optimum cleanliness and purity.
• The prefilter fitted extends the life of HEPA filter drastically.
• Silent Vibration-Free Blower ensure noiseless operation and anti-vibration construction provides efficient working environment.
• To work on 220/230 volts A.C. supply.

Technical Specifications

• MOC: Cold Rolled Steel Duly (powder coated)/ PCGI and Stainless Steel (S.S.304)
• Purity: Confirming to class 100 conditions
• Main filter: HEPA Filter (99.97% efficient at 0.3 micron parties)
• Prefilter: High efficiency prefilter.
• Illumination: Fluorescent Lamp 40W
• Sterilizing: UV Germicidal Tube.
• Utility: Gas/Air cock and multipoint 15/5 Amp. Electric socket.
• Supply Voltage & Frequency: AC 230V, 50/60 Hz
