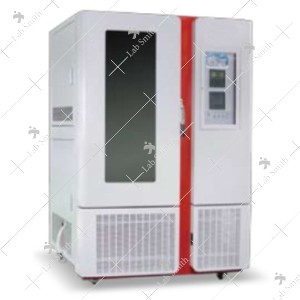

Cryo Cooler WVCP

More Views

Cryo Cooler WVCP

Code:

Cryo Cooler WVCP

Specifications

 ■ Application of Cryogenic Cooling System which is registered to the international patent

 ■ Maximizing stability and reliability with the application of advanced production technology and mass-production  technology of -156°C cryo freezer

 ■ Realization of cost effectiveness with standardized  components and mass production technology

 ■ Maintenance: Preparation and supply of standardized components (compressor, refrigerant and control device) for quick repair and realization of inexpensive maintenance  cost with simple repair process

Control System

 ■ Digital Controller

 Application of the product

 ■ Vacuum Evaporation Coating

 ■ Film Deposition

 ■ Semiconductor, LCD sputtering

 ■ Optical Industry

 ■ Various industries which need high speed – high degree vacuum

Option

 ■ Air cooling type

 ■ Remote control system

Model	LSWVCP-1500	LSWVCP-1650
Max. temperature	-150°C	-165°C
Operation temp. range	-90°C~-150°C	-90°C~165°C
Vacuum pressure	1x10^{-5 Torr} ~ 5x10^{-10 Torr}
Size(Out)	W1204 x D804 x H1852
Pre-cooling speed	80Mim. (Attm 25°C ~ -120°C Stand-by)
Cryo-coil cooling	Cryo coil on (+10°C to -140°C : 4min.)
Defrost time	Heatup (-140°C to +10°C: 2min.)
Defrost	Hot gas by pass
Stand-by time	3Min. (Defrost off / Stand-by delay time)
Operation	Cryo coil on — Defrost — Stand by — Cryo coil on
Cooling water	25 L/Min.
Heat removal capacity	Max. 3,600Watts at(-90°C ) Min. 150Watts at(-150°C)	Max. 4,500Watts at (-90°C ) Min. 150Watts at(-165°C)
Cryo coil	09.52mm or 012.7mm (Standard Capacity for 6m, Optional-9m)
Refrigerants	CFC-free Mixed-Refrigerant (WVCP-MX7)	CFC-free Mixed-Refrigerant (WVCP-MX9)
Electric requirement	380V / 440V 3phase 50 /60 Hz or 220V 3phase 50 / 60 Hz
Weight	480Kg	570Kg

Description

Details

Cryo Cooler WVCP

Specifications

 ■ Application of Cryogenic Cooling System which is registered to the international patent

 ■ Maximizing stability and reliability with the application of advanced production technology and mass-production  technology of -156°C cryo freezer

 ■ Realization of cost effectiveness with standardized  components and mass production technology

 ■ Maintenance: Preparation and supply of standardized components (compressor, refrigerant and control device) for quick repair and realization of inexpensive maintenance  cost with simple repair process

Control System

 ■ Digital Controller

 Application of the product

 ■ Vacuum Evaporation Coating

 ■ Film Deposition

 ■ Semiconductor, LCD sputtering

 ■ Optical Industry

 ■ Various industries which need high speed – high degree vacuum

Option

 ■ Air cooling type

 ■ Remote control system

Model	LSWVCP-1500	LSWVCP-1650
Max. temperature	-150°C	-165°C
Operation temp. range	-90°C~-150°C	-90°C~165°C
Vacuum pressure	1x10^{-5 Torr} ~ 5x10^{-10 Torr}
Size(Out)	W1204 x D804 x H1852
Pre-cooling speed	80Mim. (Attm 25°C ~ -120°C Stand-by)
Cryo-coil cooling	Cryo coil on (+10°C to -140°C : 4min.)
Defrost time	Heatup (-140°C to +10°C: 2min.)
Defrost	Hot gas by pass
Stand-by time	3Min. (Defrost off / Stand-by delay time)
Operation	Cryo coil on — Defrost — Stand by — Cryo coil on
Cooling water	25 L/Min.
Heat removal capacity	Max. 3,600Watts at(-90°C ) Min. 150Watts at(-150°C)	Max. 4,500Watts at (-90°C ) Min. 150Watts at(-165°C)
Cryo coil	09.52mm or 012.7mm (Standard Capacity for 6m, Optional-9m)
Refrigerants	CFC-free Mixed-Refrigerant (WVCP-MX7)	CFC-free Mixed-Refrigerant (WVCP-MX9)
Electric requirement	380V / 440V 3phase 50 /60 Hz or 220V 3phase 50 / 60 Hz
Weight	480Kg	570Kg

Additional Information

Additional Information

Code	No

Reviews

Be the first to review this product
