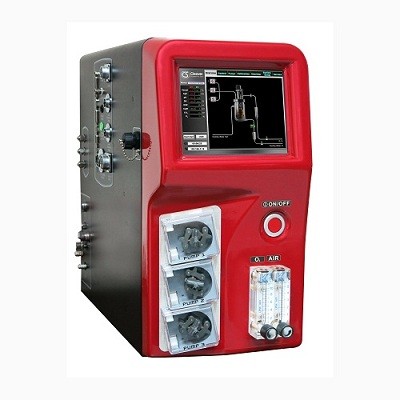

proSET One Fermentation System
Description
The most versatile, cost and space saving fermentation system is now available from our proSET Fermentation product line-the One System.
proSET One System is not only compact in size but also provides all the necessary tools as a standard instrument. The duo heating system allows you to choose any vessel types up to 10L for any application needs. The optional expansion module allows you to add additional devices to enhance the capability of the system. All necessities such as temperature, anti-foam, pH and DO probe are all included in the standard package.
PC software connects up to 16 systems 16 vessels at the same time.
Technical Specifications:
Cat. No. CSFS-06 Control unit Control panel 8" Color touch-screen interface Communication port Remote software control through Ethernet, up to 16 systems per PC Data export through USB port Analog AUX port for system extension Program storage Up to 59,994 process programs Log data storage Up to 100 process monitoring data files Cabinet material ABS front panel and painted iron housing Dimension Footprint: W x D = 9.84" x 20.08" (250mm x 510mm), Height: 19.69" (500mm) Rated voltage 110V~/220V; 50/60 Hz, 10A Aeration Inlet gas flow-meter 0,0.1-1LPM (0.5L), 0, 0.2-2.5LPM (1L), 0, 1-10LPM (3, 5L), 0, 2-25LPM (10L) Sparger Orifice ring Baffle Removable 316L stainless steel baffles Temperature Heating 1. Thermostat System: built-in heat exchanger (550W heater, water circulation pump) 2. Dry heating system (heating blanket or heating base unit) Cooling Cooling coil and solenoid valve Range with FS-V-A / B / C series : 5°C (41°F) above coolant up to 60°C (140°F); with FS-V-D series :5°C(41°F) above coolant up to 90°C (194°F) Probe Platinum RTD probe (PT-100), non autoclavable Control mode Manual or Programmable 15 steps PID control Agitation Drive Removable top brushless motor Speed range a. For extremely shear-sensitive cell line: 30 - 300rpm b. For fermentation and cell culture: 30 - 1200rpm (0.5 - 5L) and 30 - 1000rpm (10L) Resolution 1 rpm increment Impeller 2 impellers for 0.5-1L vessel and double jacketed vessels 3 impellers for 3L vessel and above Note: Customized impellers are available upon ordering Control mode Manual or Programmable 15 steps PID control pH Range 2 - 14pH Resolution 0.01pH Probe Gel-filled electrode, autoclavable Control mode Manual/Acid start/programmable 15 steps PID control with adjustable deadband, **pH stat with smart feeding technology DO Range 0 - 200% Resolution 0.1% Probe Polarographic DO sensor; autoclavable Control mode 1-stage DO cascade response a. Increase or decrease agitation speed **b. Supply external oxygen source using solenoid valve switch (Oxygen enrichment module required, optional device) **c. Adjusting DO level using accurate gas mixing control (Gas mixing station module required, optional device) **DO stat with smart feeding technology ORP(optional) Measurement range -/+ 2000mV Resolution 1mV Probe Gel-filled electrode: autoclavable Foam / Level Probe 316L stainless steel protector with insulated PTFE tube, autoclavable, adjustable sensitivity control Control Mode Foam: On/Off switch Level: On/Off switch control with wet/dry probe set up Peristaltic Pump Pump number 3 x built-in Watson Marlow pumps, **1-2 external pump extendable (MU-D series required, optional) Motor type Precise stepping motor; minimum speed is 1rpm Speed range 0 to 65rpm Resolution 1rpm Control mode Manual or Programmable 15 steps feeding control; pump can be assigned for Acid, Base, Antifoam and Substrate; **flow rate & total volume calculation Exhaust Device type 316L stainless steel condenser Ordering Information:
Cat No. Product Description CSFS-06-110/220 proSET One Fermentation System Controller, 110V/220V Complete proSET One Fermentation System (CSFS-06 Series) + Hamilton Probe CSFS-06-AS5P-110 Complete One Fermentation System for 500ml Double Jacketed Vessel, 110V CSFS-06-AS5P-220 Complete One Fermentation System for 500ml Double Jacketed Vessel, 220V CSFS-06-A01P-110 Complete One Fermentation System for 1L Double Jacketed Vessel, 110V CSFS-06-A01P-220 Complete One Fermentation System for 1L Double Jacketed Vessel, 220V CSFS-06-A03P-110 Complete One Fermentation System for 3L Double Jacketed Vessel, 110V CSFS-06-A03P-220 Complete One Fermentation System for 3L Double Jacketed Vessel, 220V CSFS-06-A05P-110 Complete One Fermentation System for 5L Double Jacketed Vessel, 110V CSFS-06-A05P-220 Complete One Fermentation System for 5L Double Jacketed Vessel, 220V CSFS-06-A10P-110 Complete One Fermentation System for 10L Double Jacketed Vessel, 110V CSFS-06-A10P-220 Complete One Fermentation System for 10L Double Jacketed Vessel, 220V CSFS-06-B01P-110 Complete One Fermentation System for 1L Single Wall Dish Bottom Vessel, 110V CSFS-06-B01P-220 Complete One Fermentation System for 1L Single Wall Dish Bottom Vessel, 220V CSFS-06-B03P-110 Complete One Fermentation System for 3L Single Wall Dish Bottom Vessel, 110V CSFS-06-B03P-220 Complete One Fermentation System for 3L Single Wall Dish Bottom Vessel, 220V CSFS-06-B05P-110 Complete One Fermentation System for 5L Single Wall Dish Bottom Vessel, 110V CSFS-06-B05P-220 Complete One Fermentation System for 5L Single Wall Dish Bottom Vessel, 220V CSFS-06-B10P-110 Complete One Fermentation System for 10L Single Wall Dish Bottom Vessel, 110V CSFS-06-B10P-220 Complete One Fermentation System for 10L Single Wall Dish Bottom Vessel, 220V CSFS-06-C053P-110 Complete One Fermentation System for 5L Single Wall Airlifter Vessel, 110V CSFS-06-C053P-220 Complete One Fermentation System for 5L Single Wall Airlifter Vessel, 220V CSFS-06-C054P-110 Complete One Fermentation System for 5L Double Jacketed Airlifter Vessel, 110V CSFS-06-C054P-220 Complete One Fermentation System for 5L Double Jacketed Airlifter Vessel, 220V CSFS-06-D03P-110 Complete One Fermentation System for 3L Single Wall Plain Bottom Vessel with Heating Base Unit, 110V CSFS-06-D03P-220 Complete One Fermentation System for 3L Single Wall Plain Bottom Vessel with Heating Base Unit, 220V CSFS-06-D05P-110 Complete One Fermentation System for 5L Single Wall Plain Bottom Vessel with Heating Base Unit, 110V CSFS-06-D05P-220 Complete One Fermentation System for 5L Single Wall Plain Bottom Vessel with Heating Base Unit, 220V CSFS-06-D10P-110 Complete One Fermentation System for 10L Single Wall Plain Bottom Vessel with Heating Base Unit, 110V CSFS-06-D10P-220 Complete One Fermentation System for 10L Single Wall Plain Bottom Vessel with Heating Base Unit, 220V CSFS-06-EPM-110 One expansion 110V module, expand system compatibility to Oxygen enrichment module, Gas mixing station, Photo-biosysnthesis module and ORP probe. CSFS-06-EPM-220 One expansion 220V module, expand system compatibility to Oxygen enrichment module, Gas mixing station, Photo-biosysnthesis module and ORP probe. - Additional Information
-
