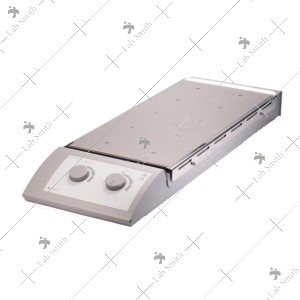

10-Channel Classic Magnetic Hotplate Stirrer

More Views

10-Channel Classic Magnetic Hotplate Stirrer

Code:
10-Channel Classic Magnetic Hotplate Stirrer
Features
  • 10-position magnetic hotplate stirrer for 0.4L×10
  • Stainless steel work plate covered with silicone cushion prevents skidding
  • Brushless DC motor
Advantages for the user
  • Big capacity stirrers  improve work efficiency and fit for parallel experiments
  • prevents skidding
  • Maintenance free motor
Specifications:
• Maintenance-free brushless DC motor
• Max speed 1100rpm
• Max. temperature 120°C
• Stainless steel work plate covered with silicone cushion, providing the excellent performance of heating uniformity and skid resistance
Catalogue No LSMS-H-S10
 Dimension of work plate [W x D]  180x450mm
 Work plate material  Stainless steel with silicone
 Motor type  Brushless DC motor
 Motor rating input  12W
 Motor rating output  4W
 Power  490W
 Heating output  470W
 Voltage  100-120/200-240V 50/60Hz
 Stirring positions  10
 Max. stirring quantity  0.4L x 10
 Max. magnetic bar[length]  40mm
 Speed range  0-1100rpm
 Speed display  scale
 Temperature display  scale
 Heating temperature range  Room temp.~120°C
 Over temperature protection  140°C
 Protection class  IP42
 Dimension [W x D x H]  182x552x65mm
 Weight  3.2kg
 Permissible ambient temperature and humidity  5-40°C, 80%


Description

Details

10-Channel Classic Magnetic Hotplate Stirrer
Features
  • 10-position magnetic hotplate stirrer for 0.4L×10
  • Stainless steel work plate covered with silicone cushion prevents skidding
  • Brushless DC motor
Advantages for the user
  • Big capacity stirrers  improve work efficiency and fit for parallel experiments
  • prevents skidding
  • Maintenance free motor
Specifications:
• Maintenance-free brushless DC motor
• Max speed 1100rpm
• Max. temperature 120°C
• Stainless steel work plate covered with silicone cushion, providing the excellent performance of heating uniformity and skid resistance
Catalogue No LSMS-H-S10
 Dimension of work plate [W x D]  180x450mm
 Work plate material  Stainless steel with silicone
 Motor type  Brushless DC motor
 Motor rating input  12W
 Motor rating output  4W
 Power  490W
 Heating output  470W
 Voltage  100-120/200-240V 50/60Hz
 Stirring positions  10
 Max. stirring quantity  0.4L x 10
 Max. magnetic bar[length]  40mm
 Speed range  0-1100rpm
 Speed display  scale
 Temperature display  scale
 Heating temperature range  Room temp.~120°C
 Over temperature protection  140°C
 Protection class  IP42
 Dimension [W x D x H]  182x552x65mm
 Weight  3.2kg
 Permissible ambient temperature and humidity  5-40°C, 80%
