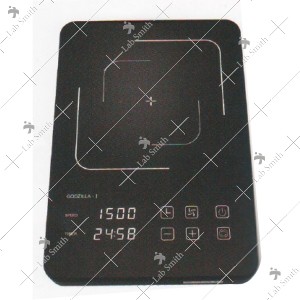

5 Inch LED Digital Magnetic Hotplate Stirrer

More Views

5 Inch LED Digital Magnetic Hotplate Stirrer

Code:
5 Inch LED Digital Magnetic Hotplate Stirrer
Features
  • Pioneering and patented design of electromagnetism driven mechanism and Nano heating technology.
  • No concern about the mechanical wear and noise of the motor as the traditional design.
  • No risk of demagnetization of the permanent magnet as the traditional design
  • Wear free running provides longer life time
  • Touch key is more smart and user friendly
  • Glass ceramic working plate is waterproof, strong acid and alkali resistant and very easy to clean
  • Heating efficiency is 20% higher than the regular stainless steel plate and aluminium plate and longer service life of more than 20000 times
  • Only one second required to heat up to 5 degree C
  • LED display offers easy reading of the speed and temperature
  • Temperature is up to 310 C and the safety temperature is 50-310 degree C.
  • Hot surface warning to prevent burns.
Specifications:
Model JMI0102012
Set-up plate dimensions 5 Inch
Set-up plate material glass ceramics
Stirring mechanism electromagnetism drive
Max. stirring quantity (H2O) 5000ml
Speed range 15-1500 rpm
Speed display LED
Temperature display LED
Temperature display accuracy ± 0.1 degree C
Safety temperature tem-310 degree C
External temperature sensor PT1000
Control accuracy with external temperature sensor PT1000 ± 0.1 degree C
Hot surface warning 50 degree
Permissible ambient temperature 5-40 degree C ( in the operation)
Permissible relative humidity 0.8
Protection class according to DIN EN 60529 IP 61
Voltage 100-240 VAC
Frequency 50/60 Hz
Heating output 750W
Dimensions 232 x 312 x 45 mm
Weight  1700g

Description

Details

5 Inch LED Digital Magnetic Hotplate Stirrer
Features
  • Pioneering and patented design of electromagnetism driven mechanism and Nano heating technology.
  • No concern about the mechanical wear and noise of the motor as the traditional design.
  • No risk of demagnetization of the permanent magnet as the traditional design
  • Wear free running provides longer life time
  • Touch key is more smart and user friendly
  • Glass ceramic working plate is waterproof, strong acid and alkali resistant and very easy to clean
  • Heating efficiency is 20% higher than the regular stainless steel plate and aluminium plate and longer service life of more than 20000 times
  • Only one second required to heat up to 5 degree C
  • LED display offers easy reading of the speed and temperature
  • Temperature is up to 310 C and the safety temperature is 50-310 degree C.
  • Hot surface warning to prevent burns.
Specifications:
Model JMI0102012
Set-up plate dimensions 5 Inch
Set-up plate material glass ceramics
Stirring mechanism electromagnetism drive
Max. stirring quantity (H2O) 5000ml
Speed range 15-1500 rpm
Speed display LED
Temperature display LED
Temperature display accuracy ± 0.1 degree C
Safety temperature tem-310 degree C
External temperature sensor PT1000
Control accuracy with external temperature sensor PT1000 ± 0.1 degree C
Hot surface warning 50 degree
Permissible ambient temperature 5-40 degree C ( in the operation)
Permissible relative humidity 0.8
Protection class according to DIN EN 60529 IP 61
Voltage 100-240 VAC
Frequency 50/60 Hz
Heating output 750W
Dimensions 232 x 312 x 45 mm
Weight  1700g
