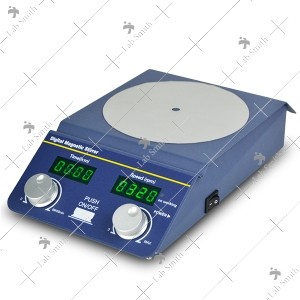

Digital Magnetic Stirrer

Code:

Digital Magnetic Stirrer

Product description: Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Product Features

1. Available for heating and stirring standard/non-standard reaction flasks between 50ml and 100L.

2. DC brushless motor make stable operation, low noise, long using life and no spark.

3. Metal plate shell, firm and durable, thermostability and anti-corrosion.

4. The control panel designed 30° slopes for convenient operation.

5. Magnetic stirring technology. Steady working at low speed, powerful working at high speed.

Technical Parameters

Model	LSTP-350	LSTP-350S	LSSP-18	LSSP-25
Platform Size	Φ137mm	Φ137mm	Φ137mm	154x163mm
Platform Material	enamel	enamel	stainless steel	silicone pad
Speed Range	/	100 ~1800rpm	100 ~1800rpm	300 ~1200rpm
Temp. Control Range (surface)	R.T.+5°C ~340°C	R.T.+5°C ~340°C	/	/
Temp. Setting Range (surface)	30°C ~340°C	30°C ~340°C	/	/
Temp. Stability	±3℃	±3℃	/	/
Time Range	1min ~99h59min	continuous	1min ~99h59min	continuous
Stirring Point Quantity	/	1 point	1 point	1 point
Max. Stir Capacity (H2O)	/	20L	20L	100L
Max. Size of Stirrer Stick	/	80mm	80mm	80mm
External Interface Temp. Sensor	PT1000	PT1000	/	/
Adjustable Safety Loop Min. Temp.	50°C	50°C	/	/
Adjustable Safety Loop Max. Temp.	350°C	350°C	/	/
Voltage	AC 220V/ AC 110V, 50/60Hz	AC 220V/ AC 110V, 50/60Hz	AC100 ~230V, 50/60Hz	AC100 ~230V, 50/60Hz
Power	600W	600W	30W	30W
Fuse	250V, 4A/8A, Ф5x20	250V, 4A/8A, Ф5x20	250V, 1A, Ф5x20	250V, 1A, Ф5x20
Dimension (WxDxH)	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm
Net Weight	2.2kgs	2.6kgs	2.6kgs	2.6kgs

Optional stir bar

Type	LSSP-A	LSSP-B	LSSP-C	LSSP-D	LSSP-E	LSSP-F	LSSP-G	LSSP-I
Dimension(mm)	Φ6X10	Φ6X20	Φ8X25	Φ6X30	Φ8X35	Φ8X45	Φ9X60	Φ9X70

Description

Details

Digital Magnetic Stirrer

Product description: Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.

Product Features

1. Available for heating and stirring standard/non-standard reaction flasks between 50ml and 100L.

2. DC brushless motor make stable operation, low noise, long using life and no spark.

3. Metal plate shell, firm and durable, thermostability and anti-corrosion.

4. The control panel designed 30° slopes for convenient operation.

5. Magnetic stirring technology. Steady working at low speed, powerful working at high speed.

Technical Parameters

Model	LSTP-350	LSTP-350S	LSSP-18	LSSP-25
Platform Size	Φ137mm	Φ137mm	Φ137mm	154x163mm
Platform Material	enamel	enamel	stainless steel	silicone pad
Speed Range	/	100 ~1800rpm	100 ~1800rpm	300 ~1200rpm
Temp. Control Range (surface)	R.T.+5°C ~340°C	R.T.+5°C ~340°C	/	/
Temp. Setting Range (surface)	30°C ~340°C	30°C ~340°C	/	/
Temp. Stability	±3℃	±3℃	/	/
Time Range	1min ~99h59min	continuous	1min ~99h59min	continuous
Stirring Point Quantity	/	1 point	1 point	1 point
Max. Stir Capacity (H2O)	/	20L	20L	100L
Max. Size of Stirrer Stick	/	80mm	80mm	80mm
External Interface Temp. Sensor	PT1000	PT1000	/	/
Adjustable Safety Loop Min. Temp.	50°C	50°C	/	/
Adjustable Safety Loop Max. Temp.	350°C	350°C	/	/
Voltage	AC 220V/ AC 110V, 50/60Hz	AC 220V/ AC 110V, 50/60Hz	AC100 ~230V, 50/60Hz	AC100 ~230V, 50/60Hz
Power	600W	600W	30W	30W
Fuse	250V, 4A/8A, Ф5x20	250V, 4A/8A, Ф5x20	250V, 1A, Ф5x20	250V, 1A, Ф5x20
Dimension (WxDxH)	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm	156 x 270 x 70mm
Net Weight	2.2kgs	2.6kgs	2.6kgs	2.6kgs

Optional stir bar

Type	LSSP-A	LSSP-B	LSSP-C	LSSP-D	LSSP-E	LSSP-F	LSSP-G	LSSP-I
Dimension(mm)	Φ6X10	Φ6X20	Φ8X25	Φ6X30	Φ8X35	Φ8X45	Φ9X60	Φ9X70
