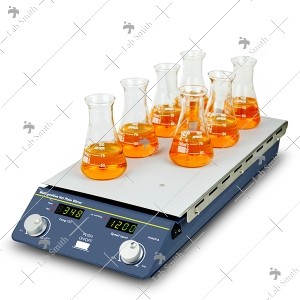

Digital Magnetic Stirrer Hot Plate (heating & stirring)

Digital Magnetic Stirrer Hot Plate (heating & stirring)

More Views

Digital Magnetic Stirrer Hot Plate (heating & stirring)

Code:
Digital Magnetic Stirrer Hot Plate (heating & stirring)
Product description: The heating plate of the digital magnetic stirrer hot plate series is made of special Ceramic. With special heating technique, the heating plate can reach temperature up to 340°C. Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.
Product Features
 1. Metal plate shell, firm and durable, thermostability and anti-corrosion.
 2. Special heating technique, the heating plate can reach temperature up to 340°C.
 3. PID for temperature control. Two display windows. High precision measurement. Single button operation.
     Inner and outer PT1000 for thermometry. Silicon controlled for output. With couple broken protection function.
 4. Available for heating and stirring standard/non-standard reaction flasks from 50ml to 1000ml.
 5. DC brushless motor makes stable operation, low noise, long using life and no spark.
 6. The heating plate is made of special Ceramic, beautiful, antiseptic and easy for cleaning.
 7. The control panel designed  30°slopes for convenient operation.
 8. Magnetic stirring technology.Low speed but stable,high speed but powerful.
 Technical Parameters
Model LSTP-350 LSTP-350S LSSP-18 LSSP-25 JTP-350E
Platform Size Φ137mm Φ137mm Φ137mm 154x163mm Φ137mm
Platform Material enamel enamel stainless steel silicone pad enamel
Speed Range / 100 ~1800rpm 100 ~1800rpm 300 ~1200rpm 0 ~1800rpm
Temp. Control Range(surface) R.T.+5°C ~340°C R.T.+5°C ~340°C / / R.T.+5°C ~340°C
Temp. Setting Range(surface) 30°C ~340°C 30°C ~340°C / / 30°C ~340°C
Temp. Stability ±3℃ ±3℃ / / ±3℃
Time Range 1min ~99h59min continuous 1min ~99h59min continuous continuous
Stirring Point Quantity / 1 point 1 point 1 point 1 point
Max. Stir Capacity (H2O) / 20L 20L 100L 20L
Max. Size of Stirrer Stick / 80mm 80mm 80mm 80mm
External Interface Temp. Sensor PT1000 PT1000 / / /
Adjustable Safety Loop Min. Temp. 50°C 50°C / / 50°C
Adjustable Safety Loop Max. Temp. 350°C 350°C / / 350°C
Voltage AC 220V/ AC 110V, 50/60Hz AC 220V/ AC 110V, 50/60Hz AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz AC 220V/ AC 110V, 50/60Hz
Power 600W 600W 30W 30W 600W
Fuse 250V, 4A/8A, Ф5x20 250V, 4A/8A, Ф5x20 250V, 1A, Ф5x20 250V, 1A, Ф5x20 250V, 4A/8A, Ф5x20
Dimension (WxDxH) 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm
Net Weight 2.2kgs 2.6kgs 2.6kgs 2.6kgs 2.6kgs
Optional stirr bar
Type LSSP-A LSSP-B LSSP-C LSSP-D LSSP-E LSSP-F LSSP-G LSSP-I
Dimension(mm) Φ6X10 Φ6X20 Φ8X25 Φ6X30 Φ8X35 Φ8X45 Φ9X60 Φ9X70

Description

Details

Digital Magnetic Stirrer Hot Plate (heating & stirring)
Product description: The heating plate of the digital magnetic stirrer hot plate series is made of special Ceramic. With special heating technique, the heating plate can reach temperature up to 340°C. Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.
Product Features
 1. Metal plate shell, firm and durable, thermostability and anti-corrosion.
 2. Special heating technique, the heating plate can reach temperature up to 340°C.
 3. PID for temperature control. Two display windows. High precision measurement. Single button operation.
     Inner and outer PT1000 for thermometry. Silicon controlled for output. With couple broken protection function.
 4. Available for heating and stirring standard/non-standard reaction flasks from 50ml to 1000ml.
 5. DC brushless motor makes stable operation, low noise, long using life and no spark.
 6. The heating plate is made of special Ceramic, beautiful, antiseptic and easy for cleaning.
 7. The control panel designed  30°slopes for convenient operation.
 8. Magnetic stirring technology.Low speed but stable,high speed but powerful.
 Technical Parameters
Model LSTP-350 LSTP-350S LSSP-18 LSSP-25 JTP-350E
Platform Size Φ137mm Φ137mm Φ137mm 154x163mm Φ137mm
Platform Material enamel enamel stainless steel silicone pad enamel
Speed Range / 100 ~1800rpm 100 ~1800rpm 300 ~1200rpm 0 ~1800rpm
Temp. Control Range(surface) R.T.+5°C ~340°C R.T.+5°C ~340°C / / R.T.+5°C ~340°C
Temp. Setting Range(surface) 30°C ~340°C 30°C ~340°C / / 30°C ~340°C
Temp. Stability ±3℃ ±3℃ / / ±3℃
Time Range 1min ~99h59min continuous 1min ~99h59min continuous continuous
Stirring Point Quantity / 1 point 1 point 1 point 1 point
Max. Stir Capacity (H2O) / 20L 20L 100L 20L
Max. Size of Stirrer Stick / 80mm 80mm 80mm 80mm
External Interface Temp. Sensor PT1000 PT1000 / / /
Adjustable Safety Loop Min. Temp. 50°C 50°C / / 50°C
Adjustable Safety Loop Max. Temp. 350°C 350°C / / 350°C
Voltage AC 220V/ AC 110V, 50/60Hz AC 220V/ AC 110V, 50/60Hz AC100 ~230V, 50/60Hz AC100 ~230V, 50/60Hz AC 220V/ AC 110V, 50/60Hz
Power 600W 600W 30W 30W 600W
Fuse 250V, 4A/8A, Ф5x20 250V, 4A/8A, Ф5x20 250V, 1A, Ф5x20 250V, 1A, Ф5x20 250V, 4A/8A, Ф5x20
Dimension (WxDxH) 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm 156 x 270 x 70mm
Net Weight 2.2kgs 2.6kgs 2.6kgs 2.6kgs 2.6kgs
Optional stirr bar
Type LSSP-A LSSP-B LSSP-C LSSP-D LSSP-E LSSP-F LSSP-G LSSP-I
Dimension(mm) Φ6X10 Φ6X20 Φ8X25 Φ6X30 Φ8X35 Φ8X45 Φ9X60 Φ9X70
