Details

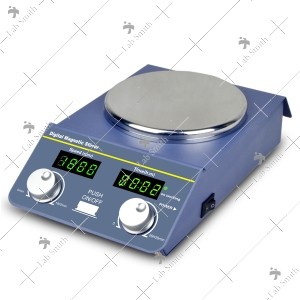

Digital Magnetic Stirrer
Product description: Magnetic stirring provided with a stir bar. Humanized design for convenient operation to meet various heating and stirring experimental needs.
Product Features
1. Available for heating and stirring standard/non-standard reaction flasks between 50ml and 20L.
2. DC brushless motor make stable operation, low noise, long using life and no spark.
3. Metal plate shell, firm and durable, thermostability and anti-corrosion.
4. The control panel designed 30° slopes for convenient operation.
5. Magnetic stirring technology. Steady working at low speed, powerful working at high speed.
Technical Parameters
Model |
LSSP-18 |
plate size [mm] |
φ135 |
Disk material |
Stainless steel |
Motor type |
Brushless DC Motor |
Motor input power [W] |
15W |
Voltage [VAC] |
100-240 |
Frequency [Hz] |
50/60 |
Number of stirring positions |
1 |
The maximum amount of mixing (H2O) [L] |
20 |
Stirring the maximum size [mm] |
50 |
Speed range [rpm] |
100-1800 |
Speed, time display |
Digital Display |
Dimensions (WxDxH) [mm] |
270×156×70 |
Weight [kg] |
2.3 |
Permissible ambient temperature [℃] |
5-40 |
Permissible relative humidity |
80% |
